Allen & Heath dLive S5000 128 channels digital audio mixer – 28 faders
We adhere to the OSS system and the VAT amount is calculated per individual country of destination of the goods. The exact value will be calculated at checkout.
Aderiamo al sistema OSS e l'importo IVA è calcolato per singolo paese di destinazione della merce. Il valore preciso verrà calcolato in fase di checkout.
[you_save]
In Stock
Allen & Heath dLive S5000 128 channels digital audio mixer is a control surface for dLive MixRack, with built-in audio I/O and audio network ports.
SECURE CHECK OUT

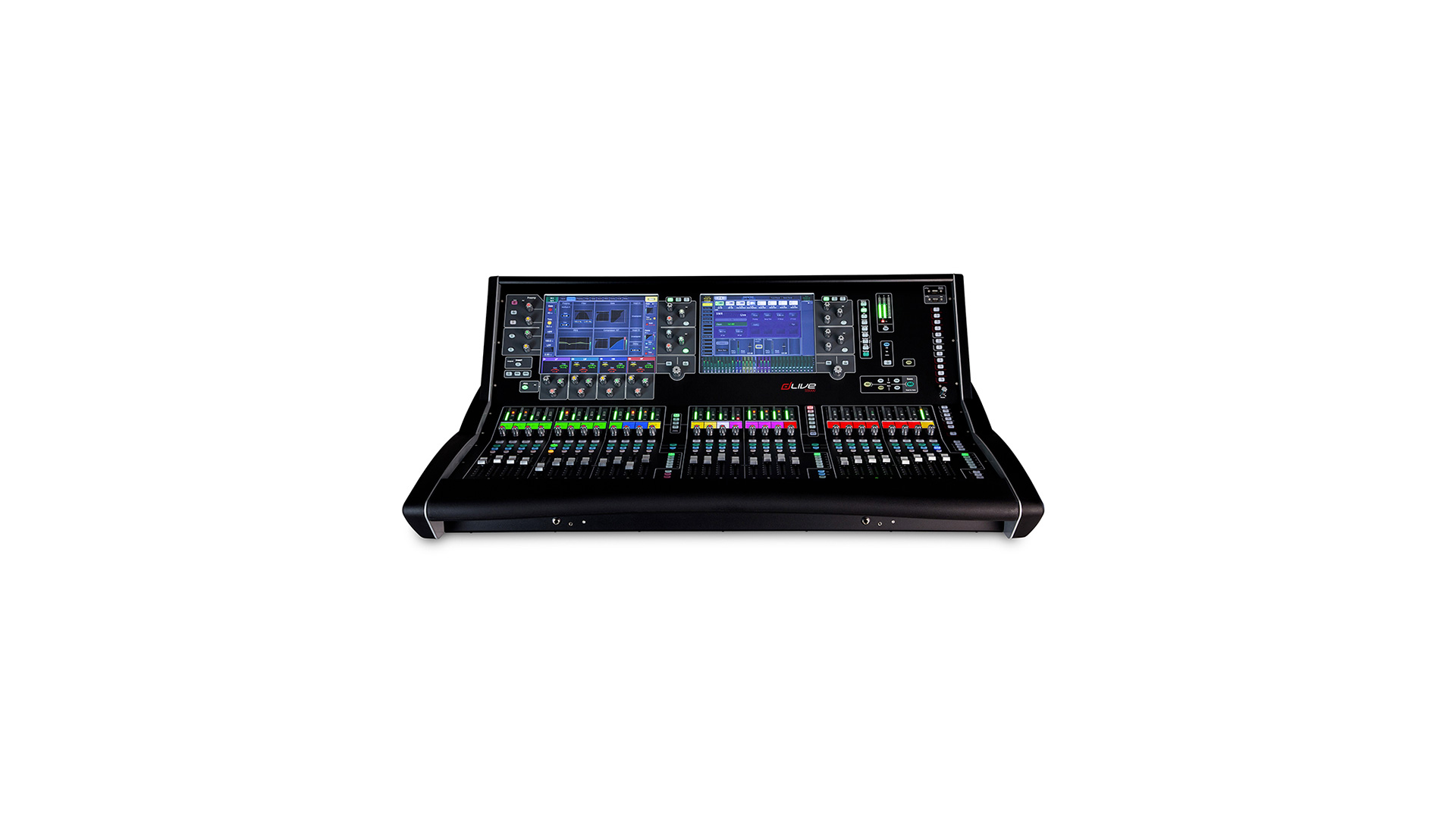

Similar products or new versions
Allen & Heath dLive S5000 128 channels digital audio mixer - 28 faders is a mid-sized control surface for the dLive MixRack, with the addition of integrated audio I/O and audio network ports. It features 28 faders on 6 levels, dual 12 capacitive touchscreens and the innovative Harmony user interface for the industry's fastest workflow...

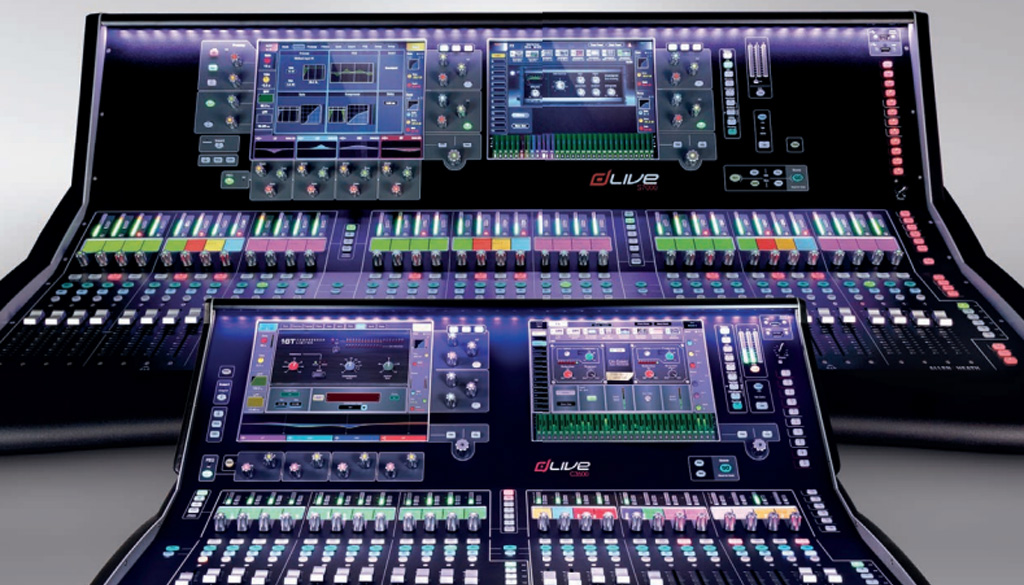

DESIGN
Intuitive and customisable
The Allen & Heath dLive Surfaces mixers feature an intuitive, customisable design with 12″ capacitive touchscreens for smooth interaction. Rotary knobs, with RGB lighting, provide precise and immediate control. The modular configuration allows users to adapt the mixer to their specific needs, optimising ergonomics and operational efficiency when mixing.

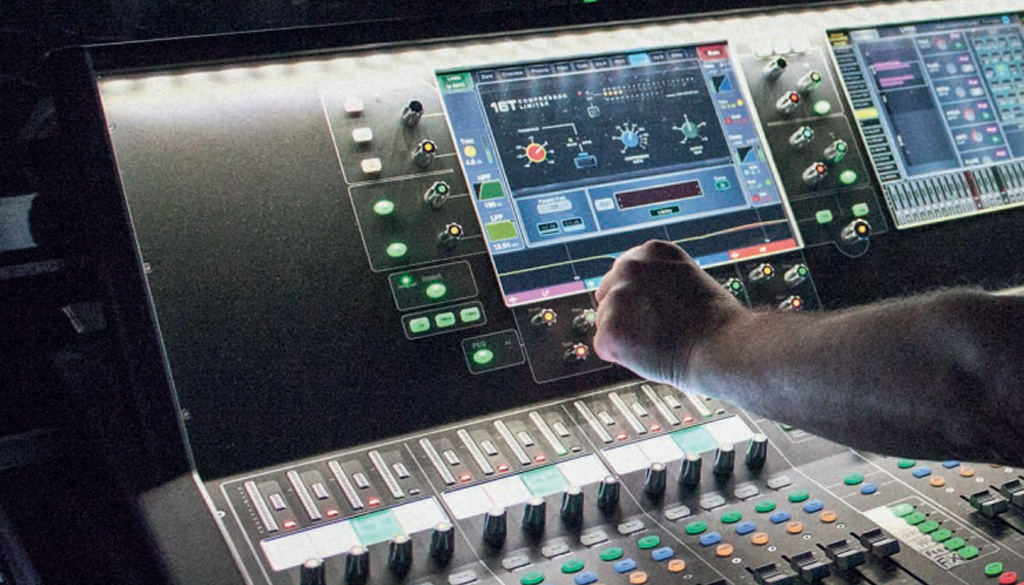

TECHNOLOGY
DEEP Processing, Dyn8 e RackExtra FX
Allen & Heath’s dLive system is powered by the XCVI core, which uses FPGA technology with 36 virtual cores to handle 160×64 channels at 96 kHz. It includes six mixing engines, offering 128 inputs and 16 stereo FX returns, with advanced processing using DEEP zero-latency architecture. Dyn8 provides dynamic equalisation and multiband compression. In addition, the RackExtra FX portfolio combines boutique plugin quality with onboard processing, providing high performance and versatility.

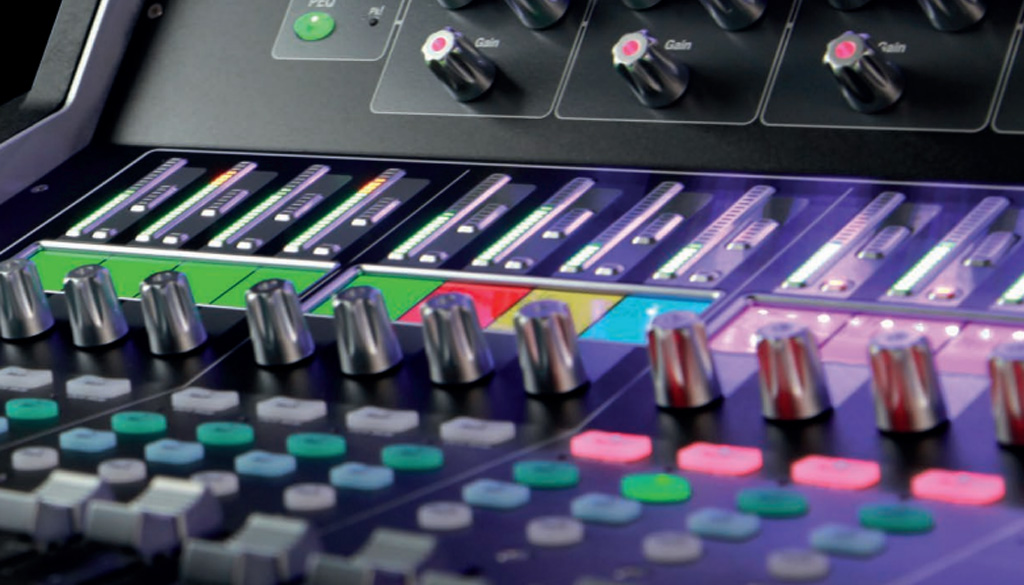

INPUTS and OUTPUTS
Analogue and digital I/O
Any input or mix og mixer Allen & Heath dLive Surfaces can be assigned to any fader bank and/or layer, virtual stripes allow names and colours to be assigned to inputs and mixes for instant navigation, and there are numerous assignable SoftKeys and 3 pages of 6 assignable rotaries for each screen. Thanks to the modular architecture, users can easily customise the number of analogue and digital I/Os to suit specific needs.

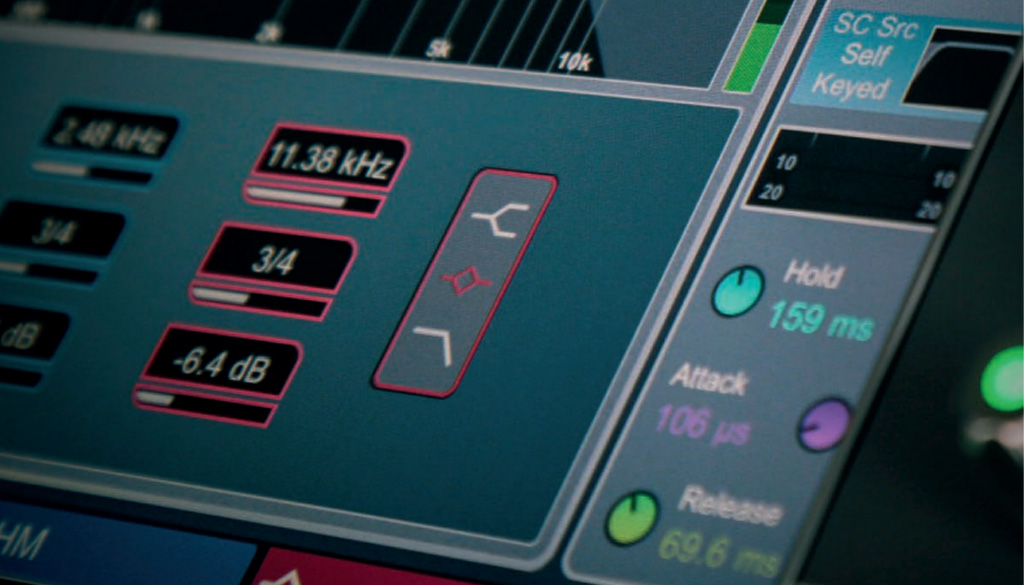

USER
Harmony User Interface e transparent Workflow
The dLive Surface’s touchscreens offer intuitive interaction, responding to gestures such as pinches and swipes. Custom widgets can be created to monitor scenes and controls. In addition, high-grip, RGB-illuminated rotary controls provide immediate visual feedback. The interface layout is fully customisable, allowing users to tailor the mix to their own preferences.
Technical specifications
| Weight | 13,3 kg |
| Dimensions | 111,6 x 72,9 x 41,3 cm |
| Input | XLR Mic/Line input: XLR balanced, +48V phantom power supply Microphone/line preamplifier: Fully recallable Input sensitivity: -60 to +15dBu Analog gain: +5 to +60 dB, in 1 dB increments Pad: -20dB active pad Maximum input level: +30dBu (PAD in) Input impedance: >4kΩ (Pad out), >10kΩ (Pad in) Microphone EIN: -127dB with 150Ω source Phantom power indication: Per jack, detection of internal or external phantom power, switched to +24V Digital inputs: AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ω Sampling frequency 96kHz SRC range 24 bit, 32k – 192kHz, with bypass option |
| Output | Analog XLR outputs: Balanced, relay protected Output impedance: <75Ω Nominal output: +4dBu = 0dB meter reading Maximum output level: +22dBu Residual output noise: -92dBu (quiet, 20-20kHz) -90dBu (quiet, 20-40kHz) Digital outputs: AES3 2 Ch XLR, 2.5 Vpp balanced terminated 110 Ω Sampling frequency 96kHz, globally switchable to 48kHz, 44.1kHz |
| System | Balanced measurement from XLR In to XLR Out, 20-20kHz, minimum gain, pad out Dynamic range: 110dB System signal to noise: -92dB Frequency response: 20Hz – 30kHz (+0/-0.8dB) THD+N (input to analog output): 0.0015% to +16dBu output, 1kHz 0dB gain Headroom: +18dB Internal operating level: 0dBu dBFS alignment: +18dBu = 0dBFS (+22dBu at XLR output) Meter peak indication: -3dBFS (+19dBu at XLR output) Sampling frequency: 96kHz |
| Channels | 128 |
