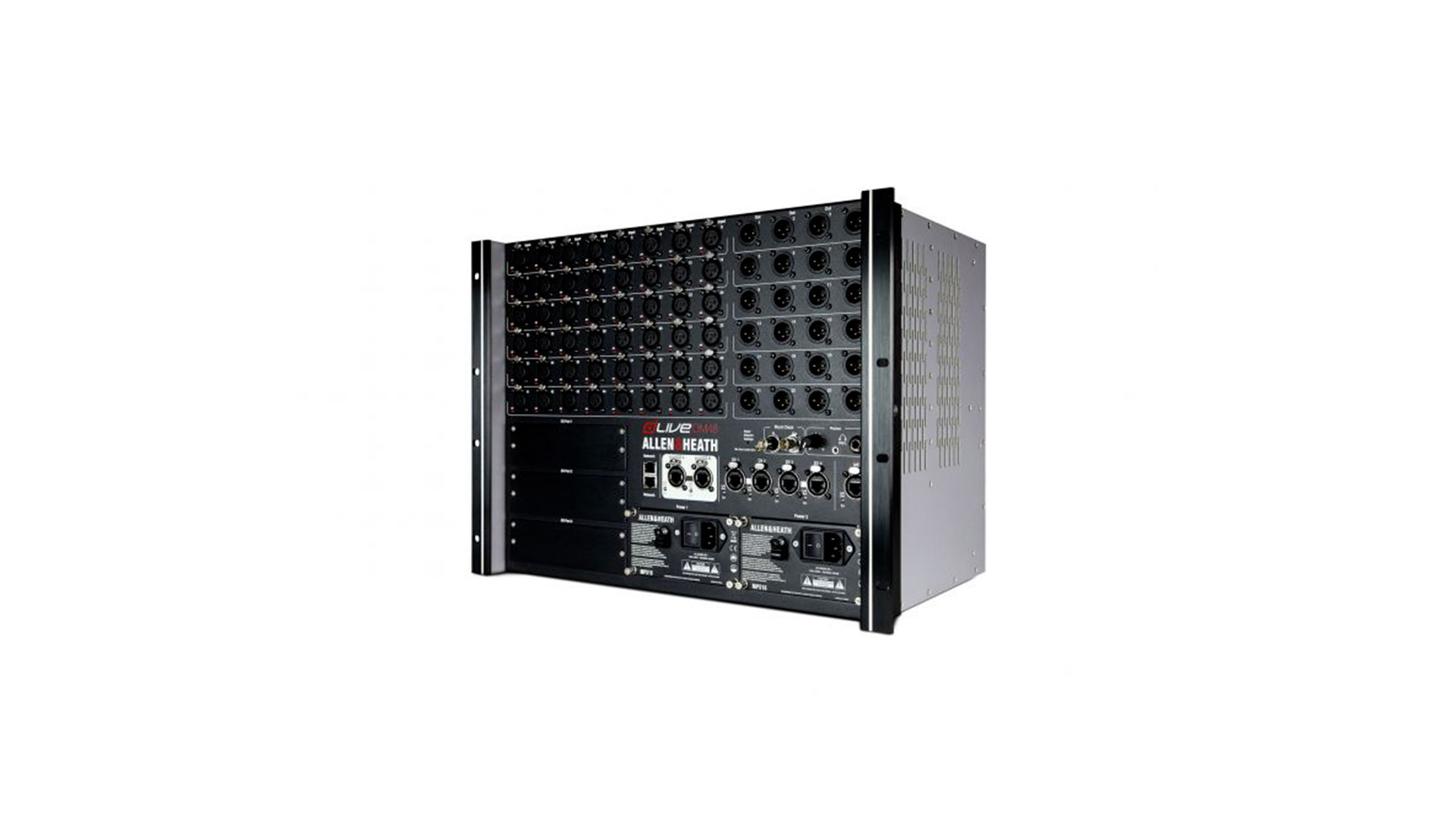

Allen & Heath DM48 dLive MixRack audio mixer 48×24 I/O
We adhere to the OSS system and the VAT amount is calculated for each country of destination of the goods. The exact amount will be calculated during checkout.
Aderiamo al sistema OSS e l'importo IVA è calcolato per singolo paese di destinazione della merce. Il valore preciso verrà calcolato in fase di checkout.
Use the "Request prices and availability" button for more information.
The Allen & Heath DM48 dLive MixRack audio mixer is part of the dLive series and features a distributed system design.
Secure check out
The Allen & Heath DM48 dLive MixRack audio mixer 48×24 I/O features a distributed system design with separate MixRack and Surface. The dLive processing brain is housed in the MixRack. The MixRacks and DM48 Surfaces are mix’n match compatible, with common configuration, setup and show files. The MixRacks also contain the same processing engine, pioneered by Allen & Heath’s R&D team with next-generation FPGA technology. The 96k/96bit XCVI core is capable of handling 128 inputs with full processing and 16 dedicated stereo FX returns, offering 160 inputs to mix, as well as a fully configurable 64 mix bus architecture, with full processing on all 64 mix channels. dLive incorporates the DEEP processing portfolio of integrated plugins, including graphic EQs, compressors, multi-band compressors and dynamic EQs, as well as 16-slot FX racks, with Allen & Heath’s acclaimed range of FX emulations. The Allen & Heath DM48 MixRack is the heart of any dLive system. It houses the XCVI processing core complete with audio I/O ports, control and audio networking.It is typically connected to a dLive Surface, but can also be controlled simultaneously or even without a Surface using a laptop or iPad, Allen & Heath IP remotes or third-party controllers via TCP/IP. It has 48 mic/line inputs, 24 line outputs and an XCVI 160 × 64 FPGA core.It also features variable bit depth for maximum precision and noise performance.

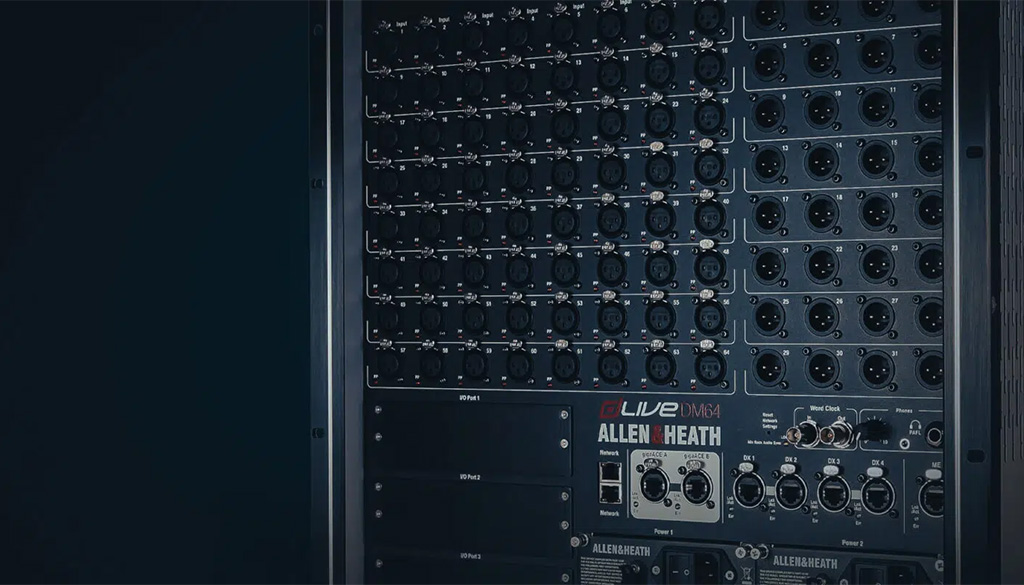

Easy access to expansion modules
All dLive MixRacks use the same mixing engine, with 128 input channels and 64 mixing outputs, a configurable 64-bus architecture, ultra-low latency of 0.7 ms and phase-aligned signal paths, providing maximum flexibility. They differ in the number of analogue I/Os, redundancy options and digital I/O card slots. The modular architecture allows different I/O configurations to easily adapt to various audio setups, and the design offers easy access to expansion modules.
Audio processing power and FPGA architecture
The dLive MixRacks are based on a powerful audio processing engine with XCVI FPGA technology, operating at 96kHz to ensure outstanding audio quality and incredibly low latency. The FPGA architecture offers dedicated processing capacity for each individual channel, allowing up to 128 inputs and 64 outputs to be handled with high precision and detail.

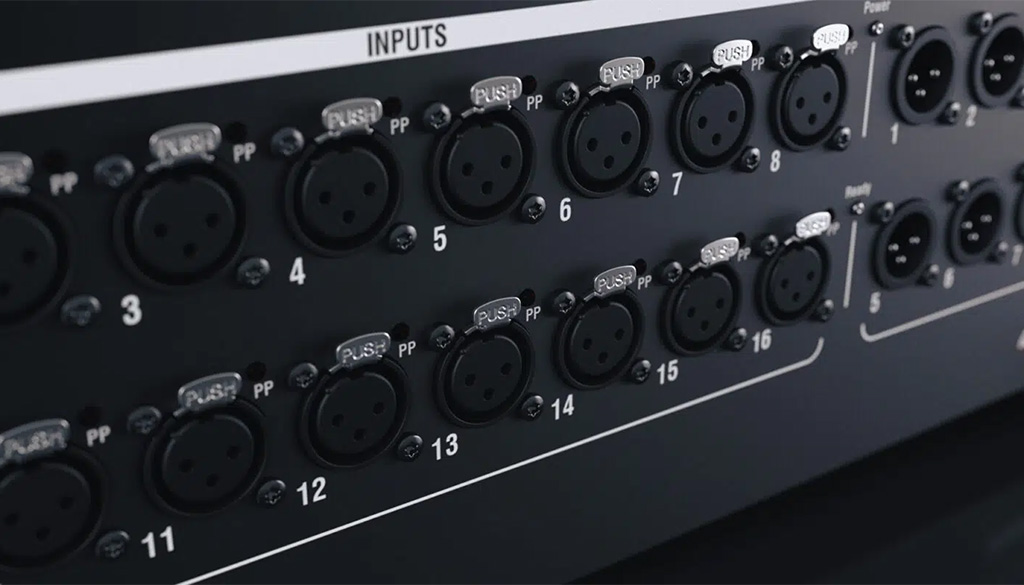

Connectivity and integration with network protocols
The dLive MixRacks support numerous audio network protocols, including Dante, Waves and MADI, for maximum flexibility and compatibility with other devices and systems. Each MixRack is equipped with Gigabit network ports for fast and stable connections, enabling integration with AV platforms and remote control systems.
User interface and remote control
Control of the dLive MixRacks can be done via dedicated control surfaces, such as the dLive consoles, or via the dedicated app for tablets and computers, which allows for intuitive and customisable interaction. The user interface offers a wide range of options for routing, preamplifier management and signal processing, all configurable through customisable scenes and presets to meet different usage needs.
Technical specifications
| Weight | 17,5 kg |
| Dimensions | 48,3 x 31,3 x 36,9 |
| Input | XLR Mic/Line input: XLR balanced, +48V phantom power supply Microphone/line preamplifier: Fully recallable Input sensitivity: -60 to +15dBu Analog gain: +5 to +60 dB, in 1 dB increments Pad: -20dB active pad Maximum input level: +30dBu (PAD in) Input impedance: >4kΩ (Pad out), >10kΩ (Pad in) Microphone EIN: -127dB with 150Ω source Phantom power indication: Per jack, detection of internal or external phantom power, switched to +24V |
| Output | Analog XLR outputs: Balanced, relay protected Output impedance: <75Ω Nominal output: +4dBu = 0dB meter reading Maximum output level: +22dBu Residual output noise: -92dBu (quiet, 20-20kHz) -90dBu (quiet, 20-40kHz) |
| System | Balanced measurement from XLR In to XLR Out, 20-20kHz, minimum gain, pad out Dynamic range: 110dB System signal to noise: -92dB Frequency response: 20Hz – 30kHz (+0/-0.8dB) THD+N (input to analog output): 0.0015% to +16dBu output, 1kHz 0dB gain Headroom: +18dB Internal operating level: 0dBu dBFS alignment: +18dBu = 0dBFS (+22dBu at XLR output) Meter peak indication: -3dBFS (+19dBu at XLR output) Sampling frequency: 96kHz |
| Power supply | 100 240V AC, 50/60Hz |
| Mains power consumption | 00W max (MPS16 V1 300W)* 250W max (MPS16 V2 250W)* |
| Channels | 128 |
