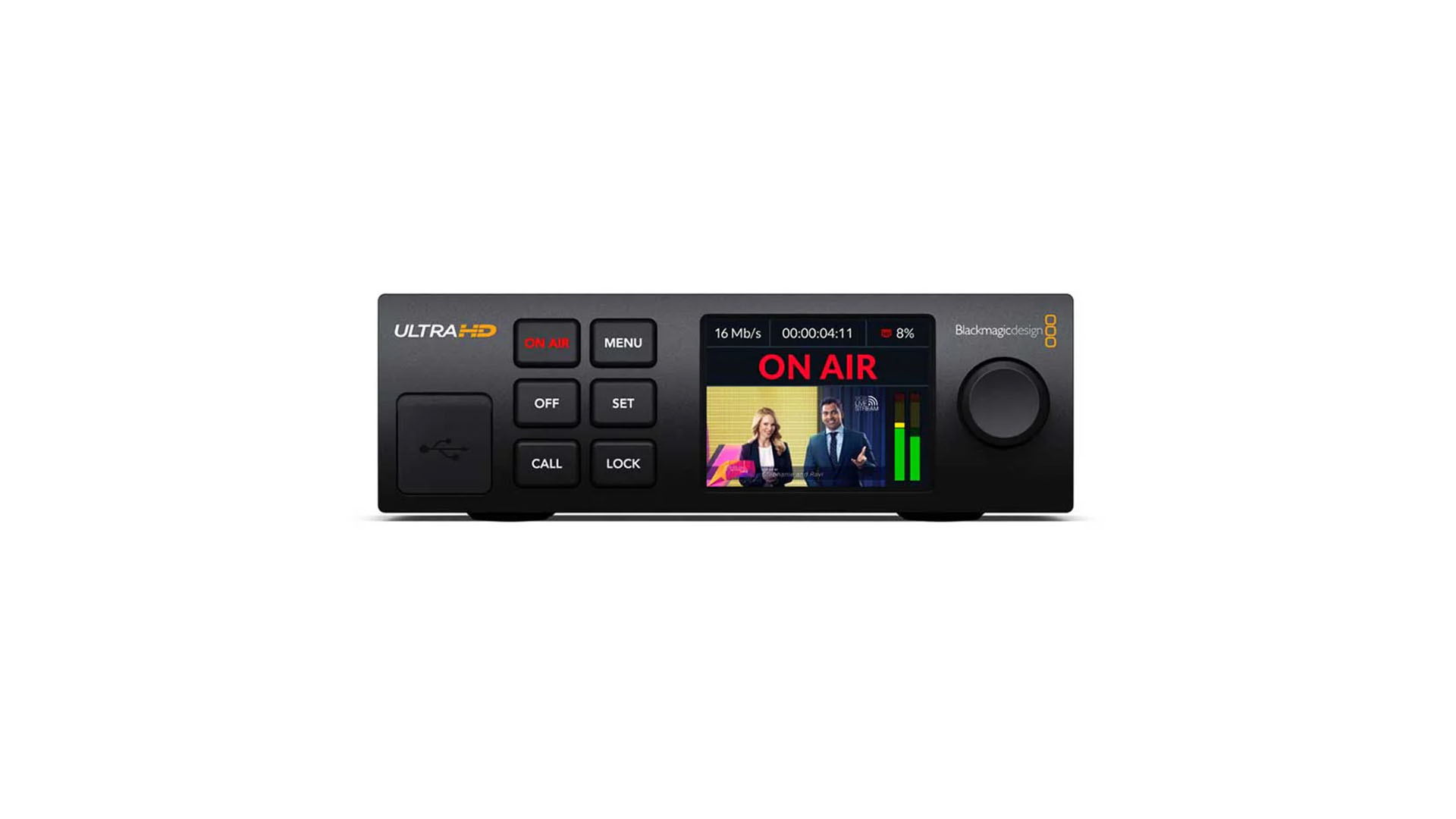

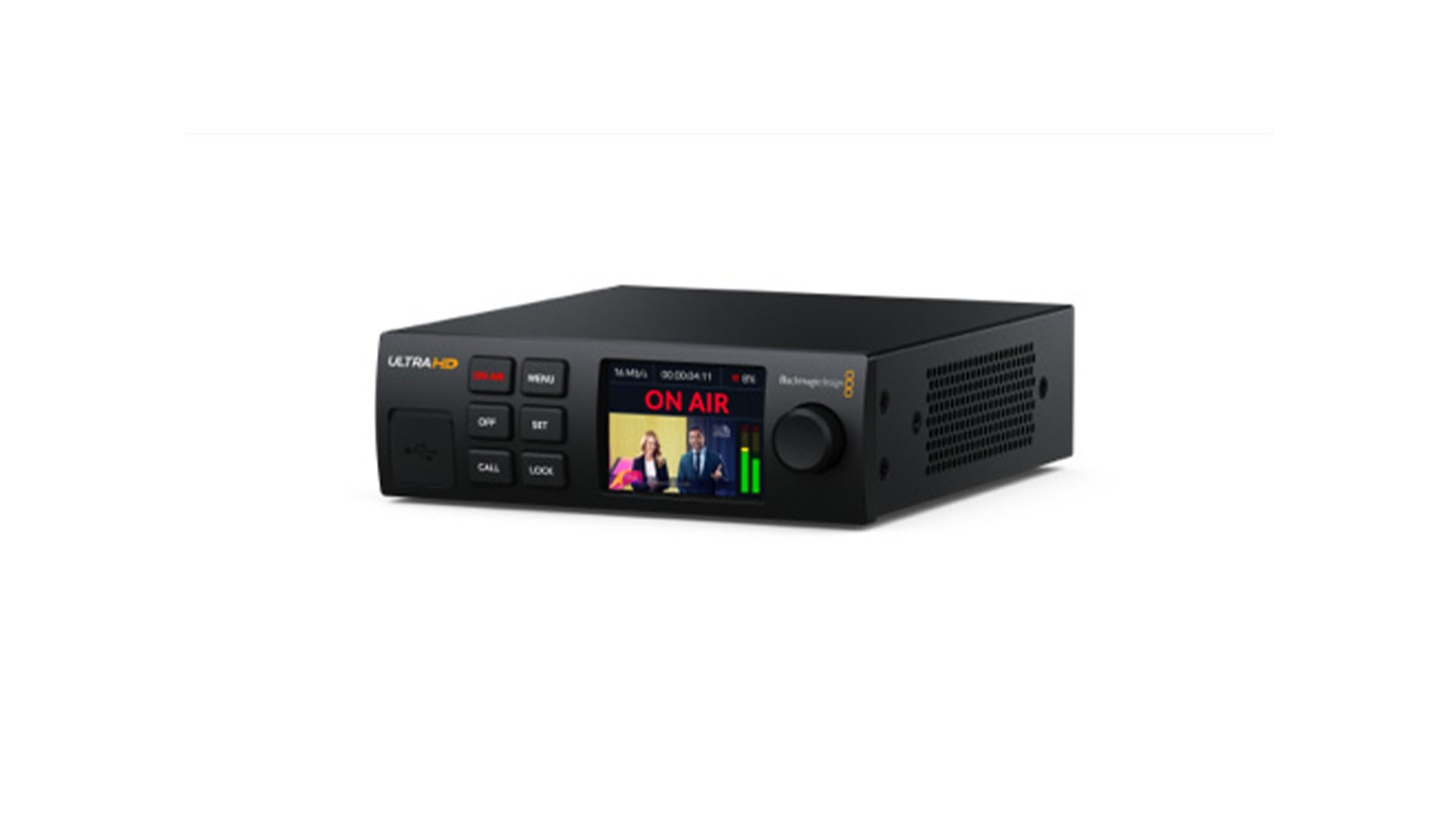

Blackmagic Streaming Encoder 4K

We adhere to the OSS system and the VAT amount is calculated for each country of destination of the goods. The exact amount will be calculated during checkout.

€ 559,00 € 681,98 tax incl.

Aderiamo al sistema OSS e l'importo IVA è calcolato per singolo paese di destinazione della merce. Il valore preciso verrà calcolato in fase di checkout.

Information est omnia

In Stock

[you_save]
Product Code / EAN: 9338716010046 COD BDLKWEB/D/SED4K Category Tag

Blackmagic Streaming Encoder 4K is ideal for those wishing to decode video streams from encoding devices such as the Blackmagic Streaming Encoder 4K.

[etheme_sales_booster_safe_checkout]

Secure check out

secure checkout martcom

The Blackmagic Streaming Encoder 4K is an advanced live broadcast solution designed to deliver professional performance in a variety of broadcast applications. This encoder supports resolutions up to 2160p60, ensuring excellent video quality in 4K format. It is compatible with H.264 and H.265 compression formats, offering efficient video transmission on a large scale. The network connection is via Ethernet, with support for protocols such as RTMP and SRT, enabling secure and stable transmission to streaming platforms such as YouTube, Facebook, and Twitch. The device is equipped with SDI and HDMI video inputs, making it easy to connect camcorders, switchers or other production devices. With support for 12G-SDI signals, it can handle high-resolution video streams, with the ability to work in both HDR and SDR modes. The USB-C port allows video to be streamed like a webcam, making the encoder compatible with a wide range of streaming and video conferencing software, such as OBS Studio, Skype, Zoom and many others. The Blackmagic Streaming Encoder 4K is designed for easy set-up and operability. The front panel includes a colour display that provides detailed information about the current broadcast, such as audio levels, video format and network status. It is also compatible with Blackmagic Cloud, which facilitates the remote management and monitoring of video streams. This device is an ideal choice for those looking for a robust, scalable and high-quality solution for live event production, streaming and professional broadcasting.

Blackmagic Streaming Encoder 4K
EASY TO USE

Streaming has never been easier

Blackmagic Streaming Encoder is a stand-alone solution that includes a powerful hardware encoder and a software utility with numerous presets. Connecting to any streaming platform is easy because it does not require a computer with complex streaming software and hundreds of settings. Everything you need is packed into a ⅓ of a rack design! Simply connect an SDI video source from a live production switcher, and connect to the internet via the built-in Ethernet port or the mobile network of a smartphone. With presets for the most commonly used platforms, all you have to do is enter a streaming code and hit On Air!

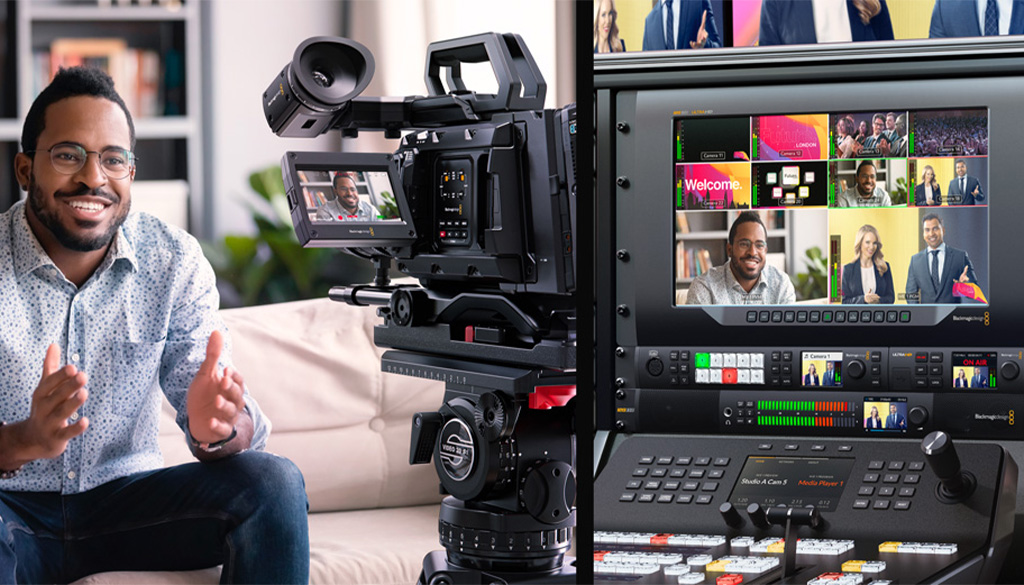

BROADCAST LINKS

Create broadcast links with point-to-point connections

Blackmagic Streaming Encoder makes it easy to create broadcast connections over the Internet with the Blackmagic Streaming Decoder 4K. Blackmagic Streaming Decoder 4K receives the H.264 or H.265 stream from the Blackmagic Streaming Encoder and converts it to SDI and HDMI video, so you can send point-to-point video signals between remote locations. Blackmagic Streaming Decoder also has a 12G-SDI reference input to which you can connect tally, camera control and talkback signals to be redirected to the encoder. Imagine having a central control room where remote camera streams converge, complete with tally, camera control and talkback. Everyone can collaborate despite being far away!

Blackmagic Streaming Encoder 4K
Blackmagic Streaming Encoder 4K

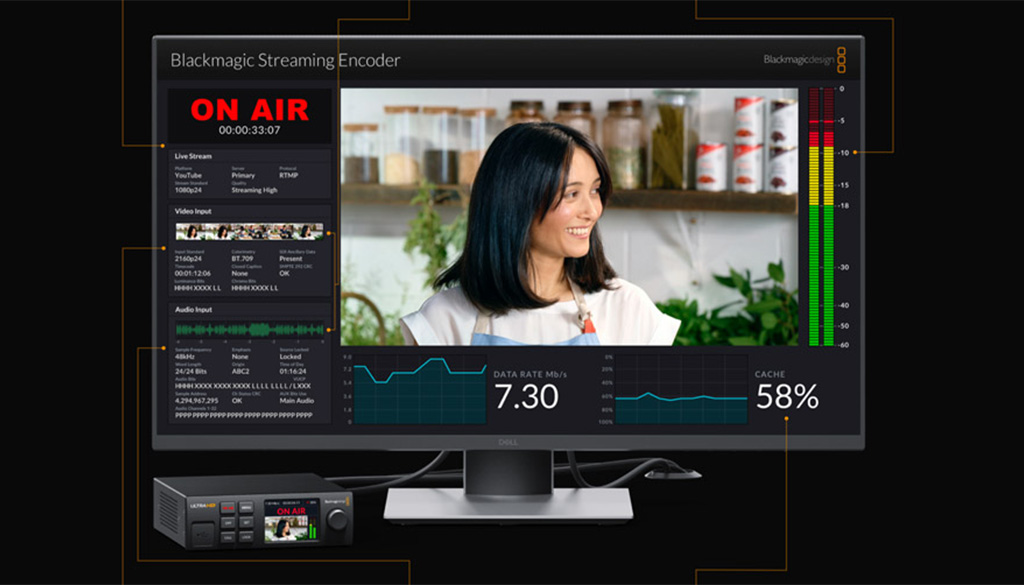

ADVANCED MONITORING

Integrated technical monitoring

If traditional transmitters are essential for TV broadcasters, now streaming servers are essential for the millions of connected viewers from all over the world! That’s why Blackmagic Streaming Encoder includes an output for comprehensive technical monitoring. The screen displays video, precision audio levels, trend graphs for codec and cache data rates, a summary of streaming settings and detailed SDI connection data. The output is compatible with both SDI and HDMI, so you can use an SDI matrix for monitoring from various locations in the studio or connect a simple HDMI TV screen.

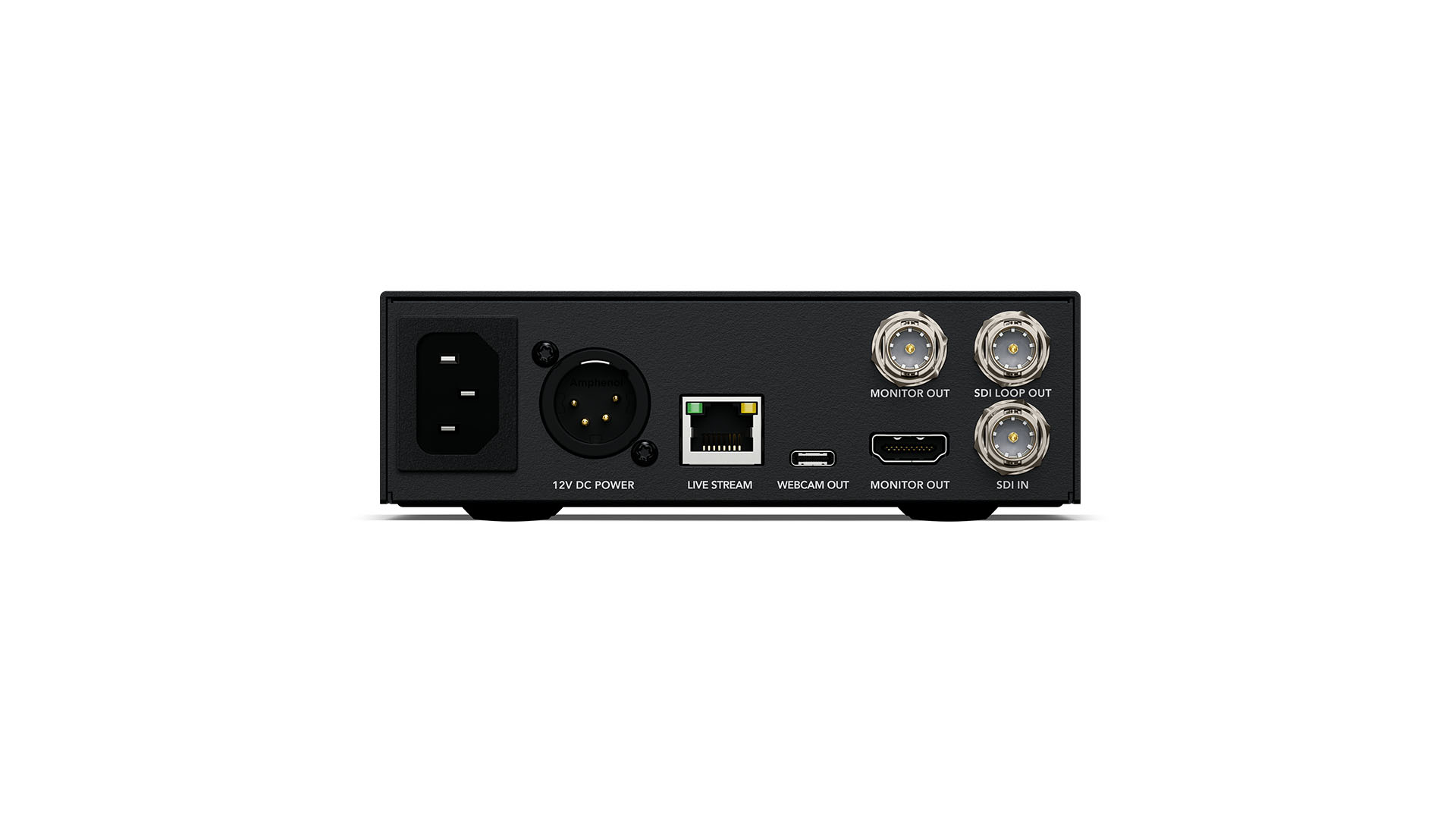

Technical specifications

Dimensions 19,1 x ​4,4 x 15,3
Display 2.2" colour
SDI video inputs 1 x 12G-SDI
SDI video outputs 1 x loop, 2 x Monitoring
HDMI video output 1 x Monitoring
Webcam output 1 x USB-C up to 2160p60
Ethernet 10/100/1000 BaseT for live streaming, software control and updates
Supported video standards HD (720p e 1080p): 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60​ Ultra HD (2160p): 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60​
Streaming Supported protocols: Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) in H.264
Closed captioning: Support for CEA-608 and CEA-708 can be integrated into the RTMP stream​
Compatible software Supporta piattaforme come Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play e Wowza Streaming Engine.
Operating temperature 0° to 40° C​
Storage temperature -20° to 45° C
Power supply 100-240V AC integrated
DC input 12V XLR a 4 pin
Energy consumption 25W
What's in the box 1 x Blackmagic Streaming Encoder 4K
1 x AC power cable (IEC socket C13)
1 x USB-C cable for configuration and tethering
1 x User manual
