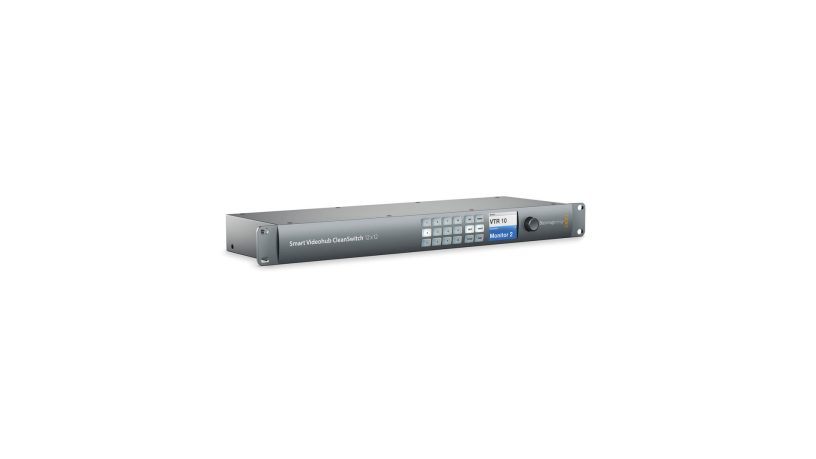

Blackmagic Smart Videohub CleanSwitch 12×12 multi-format router with 12 6G-SDI input
€ 1.399,00 € 1.706,78 vat incl. € 1.259,10 € 1.536,10 vat incl.
We adhere to the OSS system and the VAT amount is calculated for each country of destination of the goods. The precise value must be calculated during the checkout phase.
In Stock
Garanzia 3 anni
Product Code / EAN:
9338716003437
SKU
VHUBSMTCS6G1212
Category Switcher | Video Mixer | Video Matrix | Streaming
Blackmagic official warranty
The Blackmagic Smart Videohub CleanSwitch 12×12 is a mixed format router with 12 6G-SDI inputs and 12 6G-SDI outputs for routing any combination of SD, HD, Ultra HD 4K, and DCI 4K video.
Related videos
Specifications
The Blackmagic Smart Videohub CleanSwitch 12×12 is a mixed format router with 12 6G-SDI inputs and 12 6G-SDI outputs for routing any combination of SD, HD, Ultra HD 4K, and DCI 4K video. The CleanSwitch model allows for re-timing of SDI feeds, so all switches are timed to happen between frames. The Blackmagic Smart Videohub CleanSwitch 12×12 multi-format router with 12 6G-SDI input supports 4:2:2 and 4:4:4 color sampling and 10-bit processing for smoother gradations. Housed in a 1RU frame, the Smart Videohub is ideal for use in both large broadcast systems or portable mini racks for live productions. A built-in LCD lets view your sources directly on the router itself, with simple push buttons and spin knob provided for control. Routing can also be controlled using dedicated remote panels or over Ethernet using the included software for Mac OS X and Windows. You can even use the available iPad app to change routing over your wireless network.
| Weight | 1,88 Kg |
| Dimensions | 48,2 x 16 x 4,4 cm |
| Input | 12 x SD-SDI, HD-SDI and 6G-SDI 10 bit 1 x Tri-sync or black burst |
| Output | 12 x SD-SDI, HD-SDI and 6G-SDI 10 bit 1 x Ethernet |
| Standard | SD video standard 525i59.94 NTSC, 625i50 PALHD video standard 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i602K video standard 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF Ultra HD video standard 4K video standard |
| Power | 100-240V AC input. An IEC power cord is required. |
