Blackmagic Smart Videohub 12×12 multi-format router SD, HD e Ultra HD

We adhere to the OSS system and the VAT amount is calculated per individual country of destination of the goods. The exact value will be calculated at checkout.

Aderiamo al sistema OSS e l'importo IVA è calcolato per singolo paese di destinazione della merce. Il valore preciso verrà calcolato in fase di checkout.
Information est omnia

CALL

blank Product Code / EAN: 9338716002652 SKU VHUBSMART6G1212 Category
Blackmagic official partner
Blackmagic official warranty

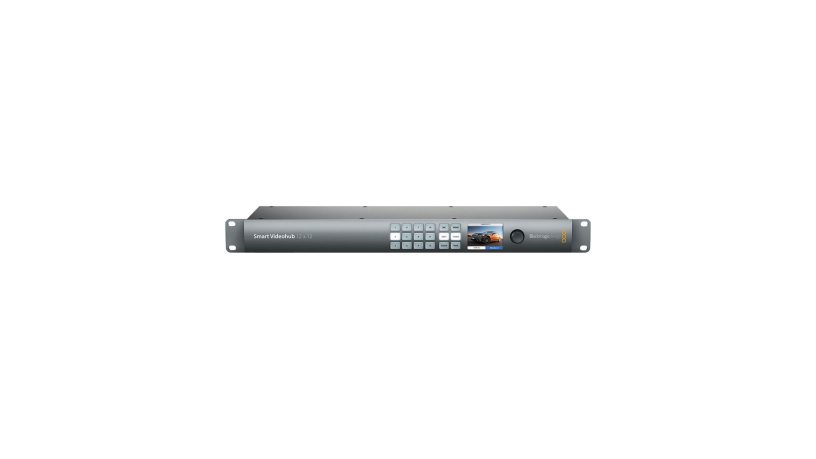

The Blackmagic Smart Videohub 12×12 multi-format router SD, HD e Ultra HD with control panel and integrated display for monitoring.

SECURE CHECK OUT

Similar products or new versions
Specifications
The Blackmagic Smart Videohub 12×12 multi-format router SD, HD e Ultra HD with control panel and integrated display for monitoring. Ideal for small collaborative productions and portable kits, it boasts advanced 6G-SDI connections, to connect and route any combination of SD, HD and Ultra HD video signals to the same router simultaneously. Includes an LCD display, buttons and control knob for revolutionary routing operations with immediate visual feedback. It offers an ethernet port for remote management, and an SDK package for Mac and Windows.
Weight 1,88 Kg
Dimensions 48,2 x 16 x 4,4 cm
Input 12 x SD-SDI, HD-SDI and 6G-SDI 10 bit
1 x Tri-sync or black burst
Output 12 x SD-SDI, HD-SDI and 6G-SDI 10 bit
1 x Ethernet
Standard SD video standard
525i59.94 NTSC, 625i50 PALHD video standard
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i602K video standard
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

Ultra HD video standard
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

4K video standard
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p

Power 100-240V AC input. An IEC power cord is required.
