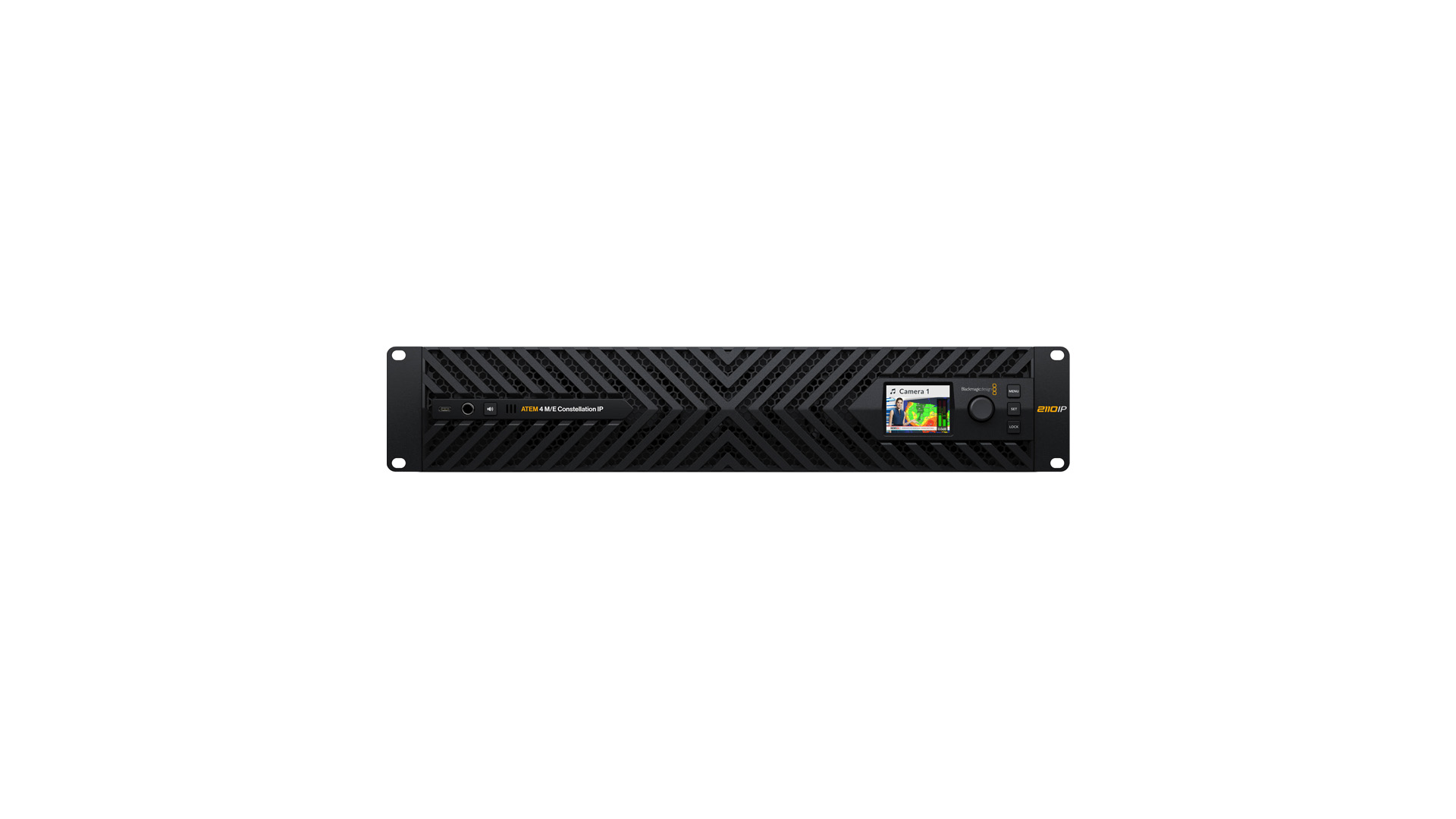

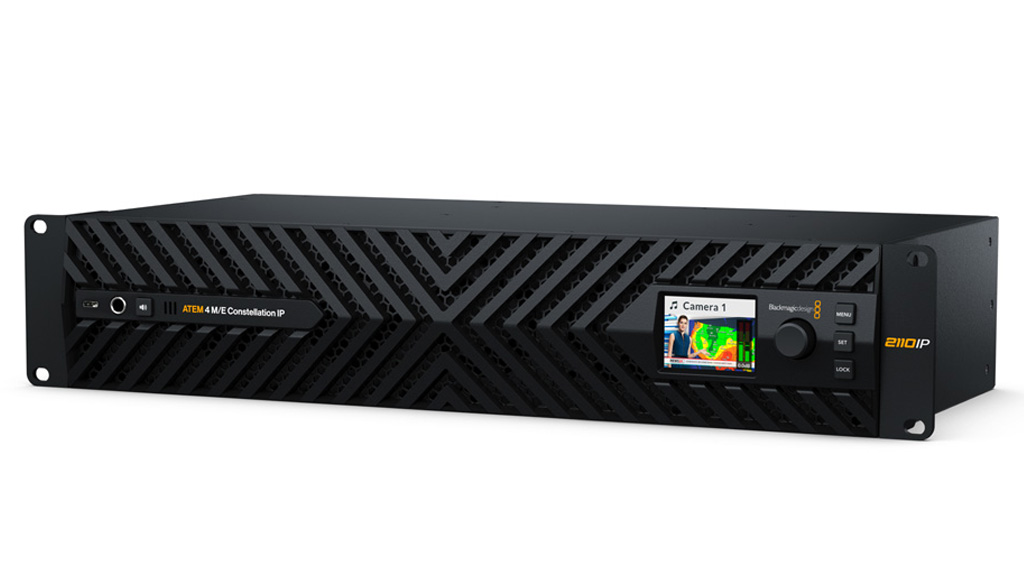

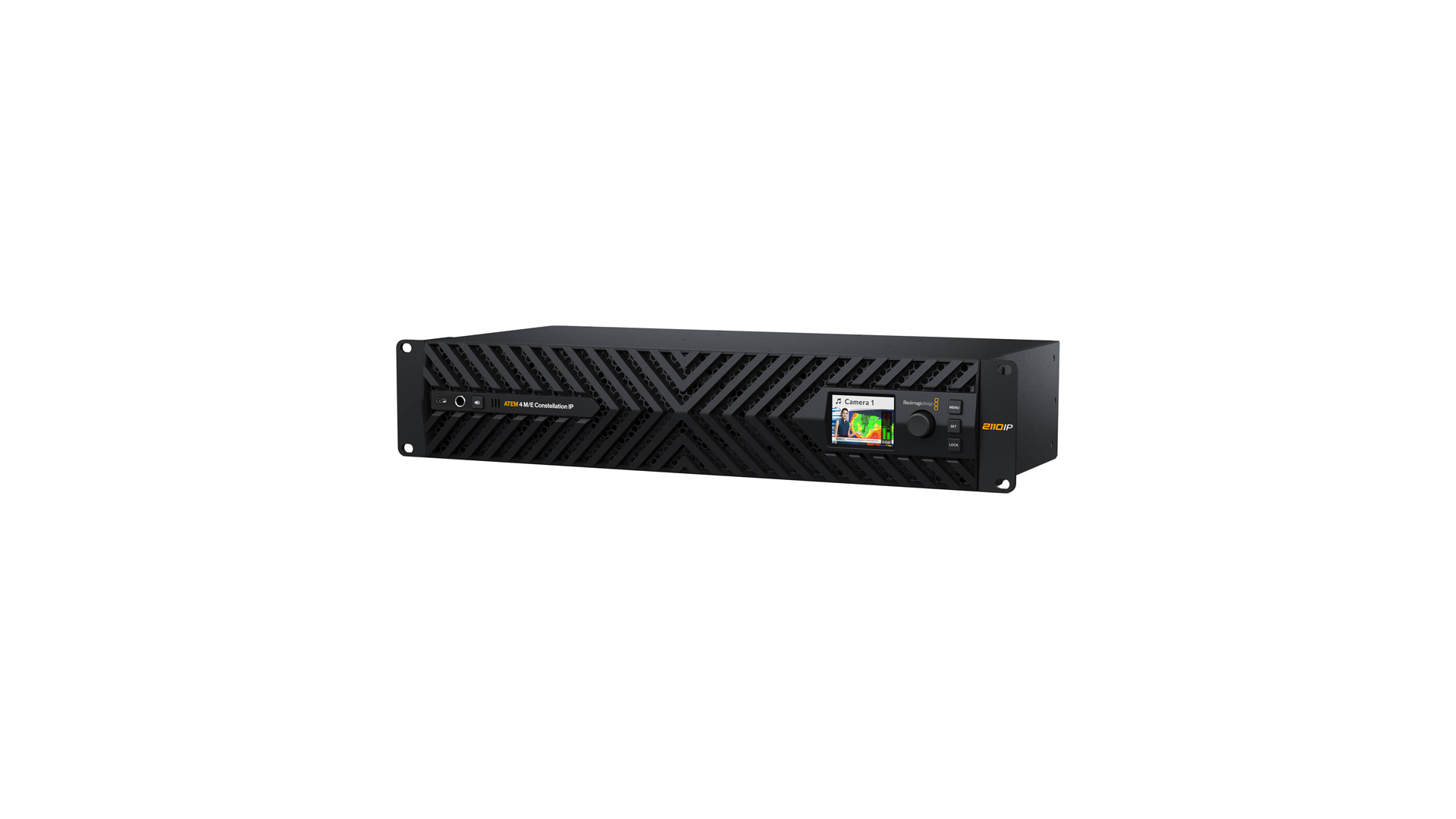

Blackmagic ATEM 4 M/E Constellation IP

In Stock

[you_save]

Product Code / EAN: 9338716010527 COD SWATEMSCN2/3ME4/IP Category Switcher | Video Mixer | Video Matrix | Streaming Tags ATEM Constellation, Live Production

Blackmagic ATEM 4 M/E Constellation IP is a high-performance Broadcast Switcher optimized for SMPTE 2110 IP video networks and complex production streams.

[etheme_sales_booster_safe_checkout]

Secure check out

Blackmagic ATEM 4 M/E Constellation HD broadcast switcher with 40 SDI inputs

Blackmagic

€ 3.395,00 € 4.141,90 tax incl. Add to cart

In Stock

SWATEMSCN2/1ME2/HD_BLACKMAGIC_Blackmagic ATEM 2 M/E Constellation HD switcher con 20 ingressi 3G-SDI

Switcher | Video Mixer | Video Matrix | Streaming

Blackmagic ATEM 2 M/E Constellation HD switcher with 20 3G-SDI input

Blackmagic

€ 1.491,00 € 1.819,02 tax incl. Add to cart

In Stock

SWATEMSCN22ME44K_BLACKMAGIC_Blackmagic ATEM 4 M/E Constellation 4K switcher per produzione dal vivo

Switcher | Video Mixer | Video Matrix | Streaming

Blackmagic ATEM 4 M/E Constellation 4K switcher for live production

Blackmagic

€ 7.995,00 € 9.753,90 tax incl. Add to cart

In Stock

Blackmagic ATEM 4 M E Constellation 4K Plus Switcher Per La Produzione Dal Vivo

Switcher | Video Mixer | Video Matrix | Streaming

Blackmagic ATEM 4 M/E Constellation 4K Plus – Switcher for Live Production

Blackmagic

€ 11.025,00 € 13.450,50 tax incl. Add to cart

Designed for the challenges of large live productions and advanced television studios, the Blackmagic ATEM 4 M/E Constellation IP marks a revolution in Broadcast video routing. Abandoning the limitations of traditional cabling in favor of the SMPTE 2110 IP standard, this flagship-class Switcher leverages powerful network connections for handling uncompressed video streams. It offers four complete mix/effects banks, 16 high-precision ATEM Advanced Chroma Keyers, a powerful SuperSource processor, and multiple DVEs for complex picture-in-picture effects. Its immense processing capabilities ensure zero visual latency, making it the ideal core for mobile directorates and top-notch multi-camera distribution systems.

Transition to the IP standard

Blackmagic ATEM 4 M/E Constellation IP is designed around the SMPTE 2110 standard, allowing transmission of uncompressed video, audio and data over a single Ethernet network. This eliminates the complexity of traditional SDI routers, simplifying cabling and providing scalable, ultra-high reliability video routing for large studios.

16 Advanced Chroma Keyer

Ideal for virtual stage design, the system integrates sixteen powerful chroma keying processors distributed over the four M/E banks. These advanced tools offer precision controls for image sampling, edge management and foreground color correction, ensuring realistic overlays and perfect drilling keys in real time.

Integrated SuperSource Processing

In addition to the standard DVEs, Blackmagic ATEM 4 M/E Constellation IP includes the unique SuperSource processor, which adds four additional DVE channels and a background layer totally independently. This allows the construction of complex multi-window (picture-in-picture) shots for interviews with multiple guests, freeing up the resources of the main M/E desks for other creative operations.

Technical specifications

Dimensions	483 x 220 x 88.4 mm
Weight	8.4 kg
Rack Form Factor	2 RU
M/E Levels Available	4 M/E
Effect Types	20x Luma Key 4x DVE 4x Transition 4x Stinger
Graphics Memory	64 Images
Downstream Keys (DSK)	4x DVE
Generators	21x Pattern
Audio Mixing	68-Channel Mixing
Switching Type	Software
Processing Resolution	UHD 4K at 60
Color Processing	10-Bit 4:2:2
Number of Input Video Sources	32

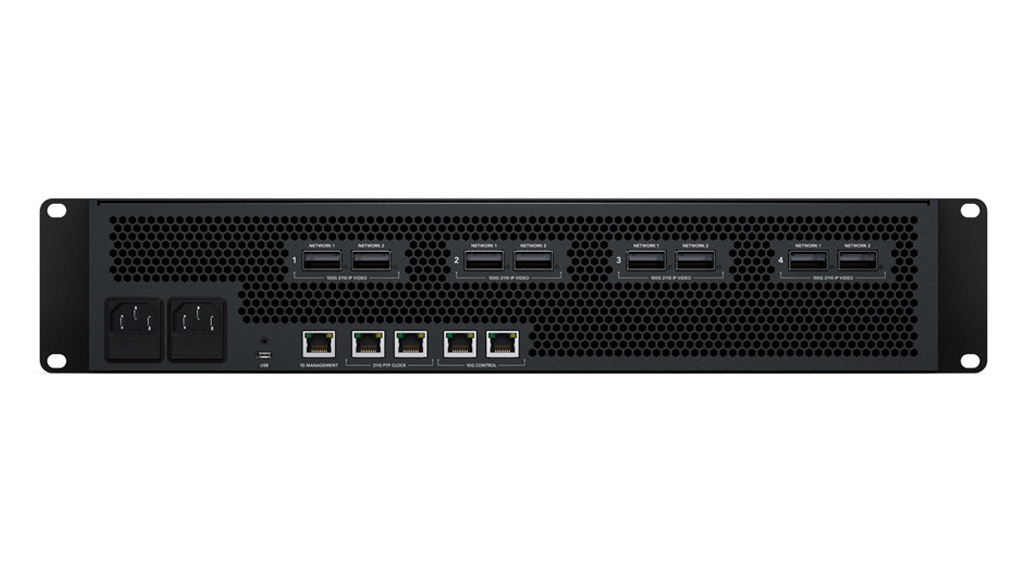

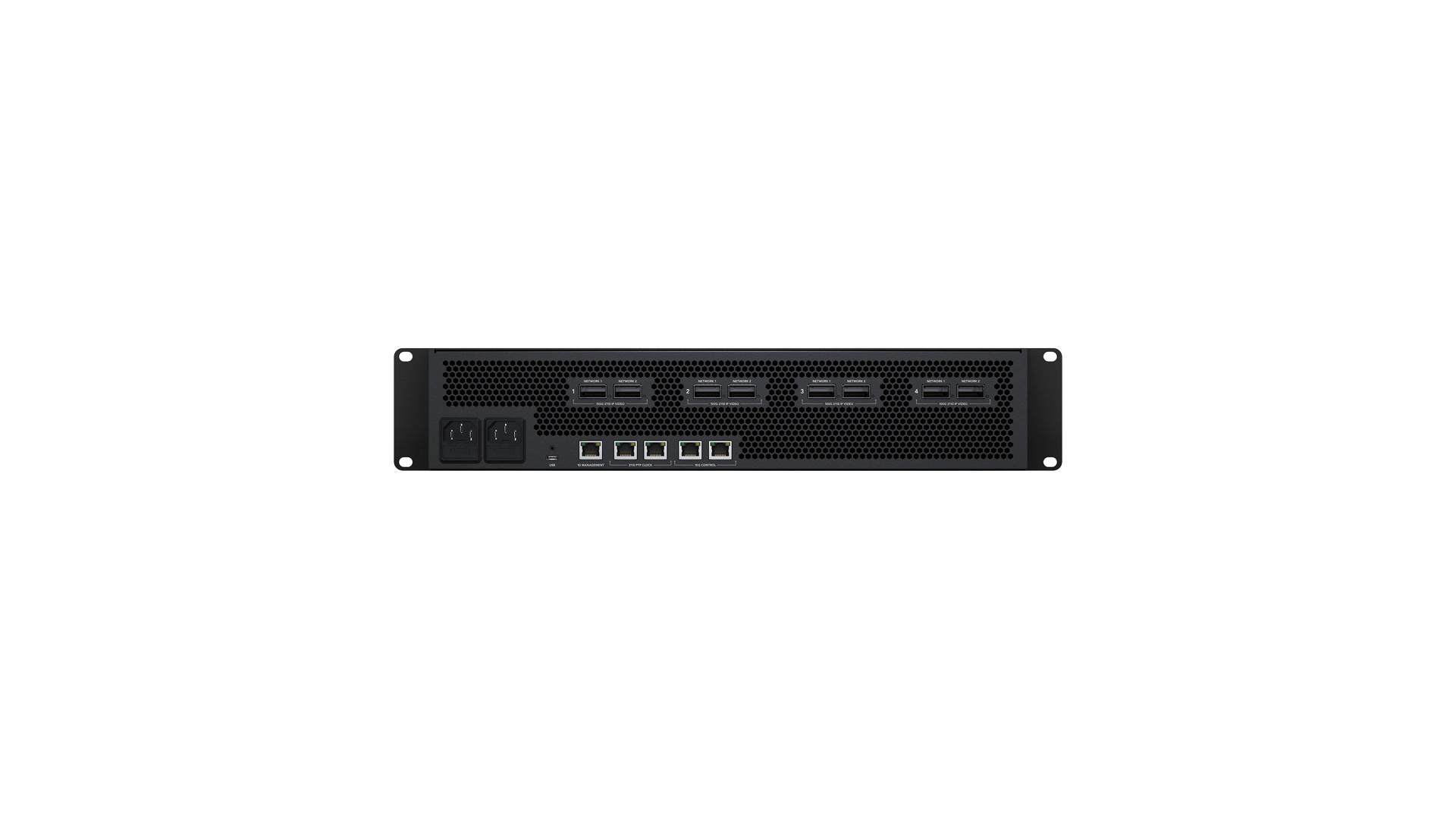

Video Inputs	8x QSFP28 Female
Input Video Format	Fiber (10-Bit 4:2:2) UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps
Video Output Channels	28
Video Outputs	8x QSFP28 Female
Video Output Format	Fiber (10-Bit 4:2:2) UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps
Multiview Output	64-Way Multiview
Other I/O	2x Control Input/Output RJ45 2x RJ45 Input/Output Reference 1x LAN Input/Output RJ45
Video Standard Compliance	SMPTE ST-2110
OS Compatibility	macOS 15 or Later Windows 11 or Later
Processor	Not Specified by Manufacturer
Wireless	No
Power I/O	2x IEC C14 Input
Operating Conditions	0 to 40°C up to 90% Humidity
Storage Conditions	-20 to 60°C up to 90% Humidity
What's in the box	1 x ATEM 4 M/E Constellation 4K Welcome wallet with QR code to download software
