Blackmagic ATEM 4 M/E Constellation 4K Plus – Switcher for Live Production
We adhere to the OSS system and the VAT amount is calculated for each country of destination of the goods. The exact amount will be calculated during checkout.
€ 11.025,00 € 13.450,50 tax incl.
Aderiamo al sistema OSS e l'importo IVA è calcolato per singolo paese di destinazione della merce. Il valore preciso verrà calcolato in fase di checkout.
In Stock
Product Code / EAN:
9338716009972
COD
SWATEMSCN2/2ME4/4K/P
Category Switcher | Video Mixer | Video Matrix | Streaming
Tags ATEM Constellation, Live Production

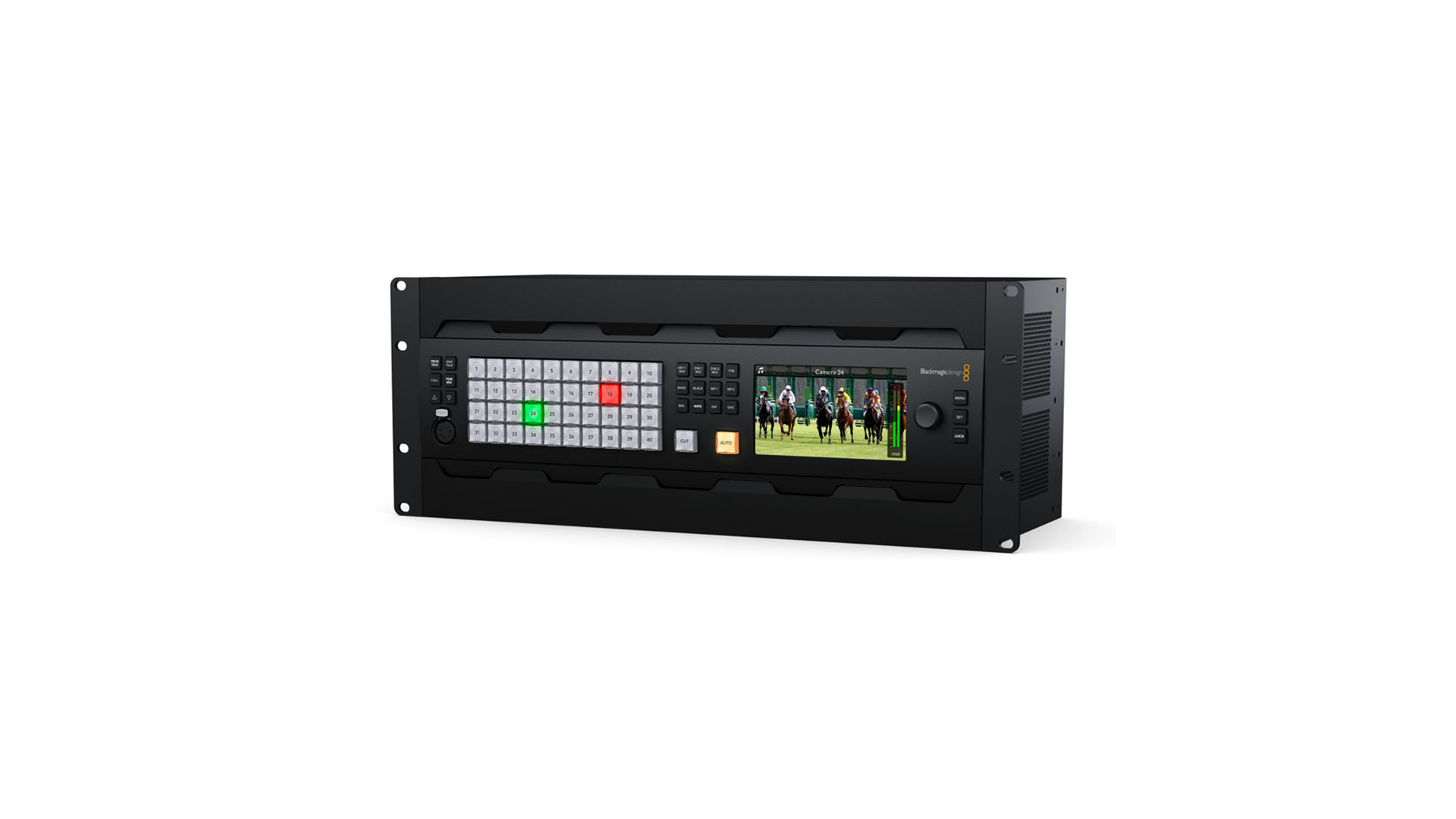

Blackmagic ATEM 4 M/E Constellation 4K Plus is the 4K switcher with 40 SDI inputs, 24 outputs, 4 M/E banks and professional video/audio management.
Secure check out
You may be interested in…
In Stock
In Stock
Blackmagic ATEM Camera Control Panel for URSA Mini, URSA Broadcast, Blackmagic Studio and Micro Studio
Original price was: € 2.550,00.€ 2.170,00Current price is: € 2.170,00. € 2.647,40 tax incl.You save: € 380,00 (15%)
Add to cartIn Stock
In Stock

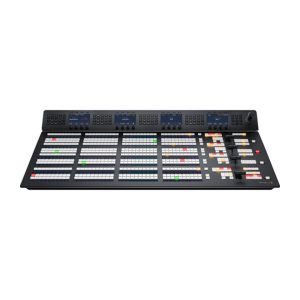

Blackmagic ATEM Constellation 4 M/E Advanced Panel 40 Switcher panel
€ 16.050,00 € 19.581,00 tax incl. Add to cartThe Blackmagic ATEM 4 M/E Constellation 4K Plus is the most powerful 4K video switcher in its class, designed for high-end broadcast productions, live events, and professional multi-camera studios. With as many as 40 12G-SDI inputs and 24 customizable SDI outputs, this switcher enables advanced and fully flexible handling of video signals in Ultra HD resolution up to 2160p60.
Each input has its own standards converter, making it easy to integrate different sources. The ATEM Constellation 4K Plus includes 4 M/E (Mix/Effect) banks, 16 advanced keyers, built-in media player, DVE 4K, SuperSource, Fairlight audio mix with parametric EQ and compression, plus customizable 4K multiview.
Fully compatible with ATEM Advanced Panel hardware, this professional switcher offers the power of a complete director in one rack-mountable device, also ideal for remote or OB van productions.
The ATEM 4 M/E Constellation 4K Plus is the ultimate choice for those seeking a flexible, scalable, ultra-high-performance 4K broadcast switcher capable of handling complex events with maximum creative and technical control.
Intuitive interface and modular design
The ATEM 4 M/E Constellation 4K Plus has a modular and compact design suitable for standard rack mounting, ideal for studios and broadcast environments. The intuitive interface includes illuminated buttons to control switches and transitions, an LCD display for monitoring, and access to key settings.

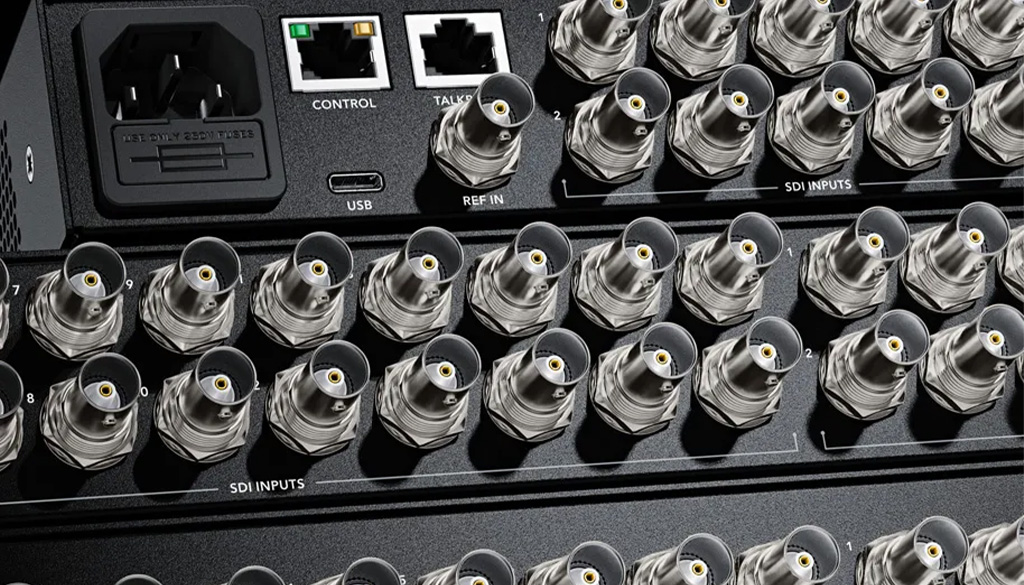

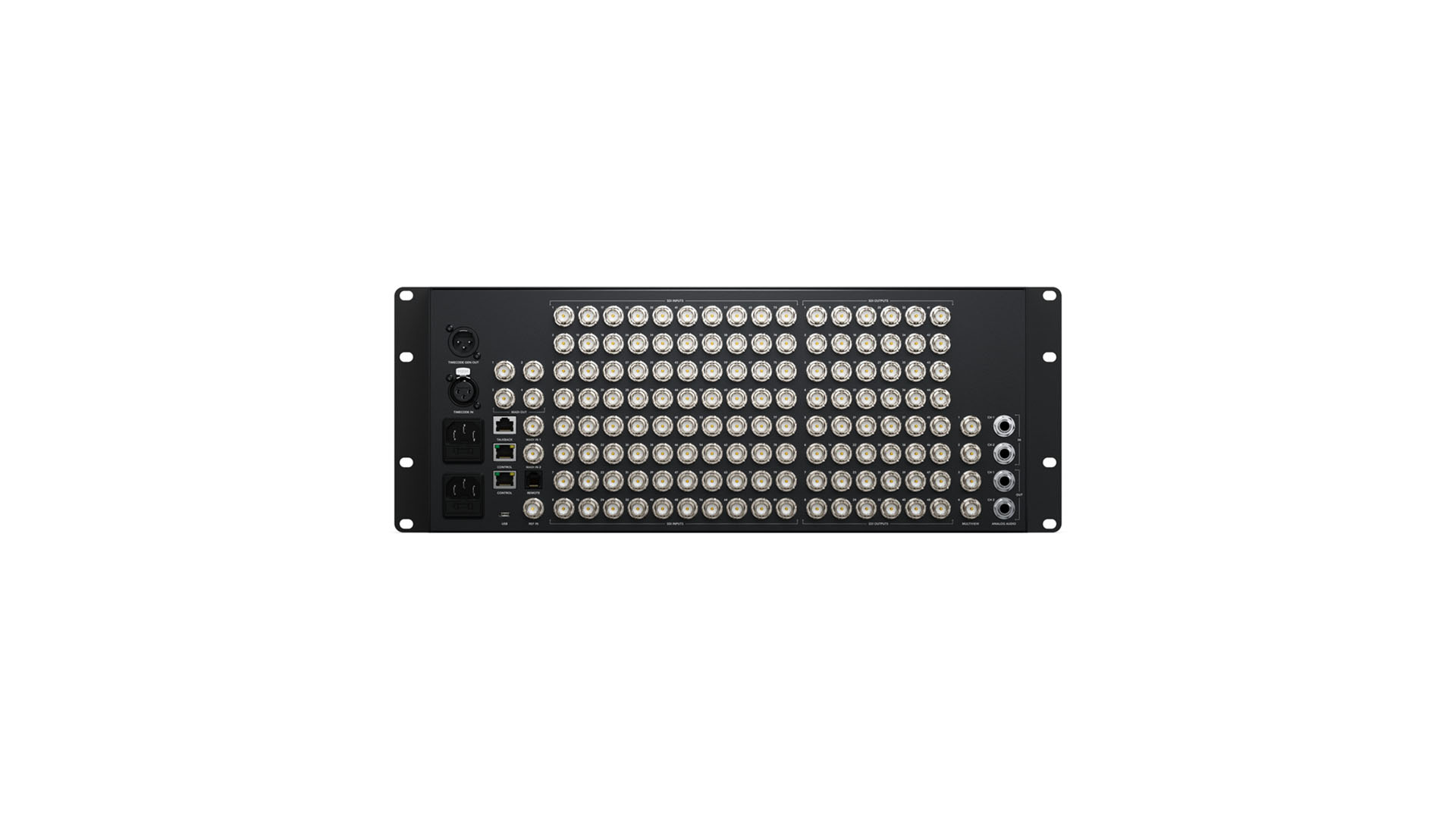

Wide range of inputs and outputs
The Blackmagic ATEM 4 M/E Constellation 4K Plus offers a wide range of inputs and outputs, with 16 SDI inputs supporting video up to 2160p60. Outputs include SDI, HDMI and multiview, allowing simultaneous monitoring of multiple sources. This flexibility facilitates integration into live productions, providing excellent connectivity for professional equipment.
Video formats up to 2160p Ultra HD
Blackmagic’s ATEM 4 M/E Constellation 4K Plus 4K video switcher supports video formats up to 2160p Ultra HD with 12G-SDI connectivity, enabling the handling of 4K resolution streams. It is compatible with HD and SD formats for versatility in different types of production and offers a wide range of frame rates, from the lowest for SD up to 60 fps for 4K.
Technical specifications
| Weight | 12.24 Kg |

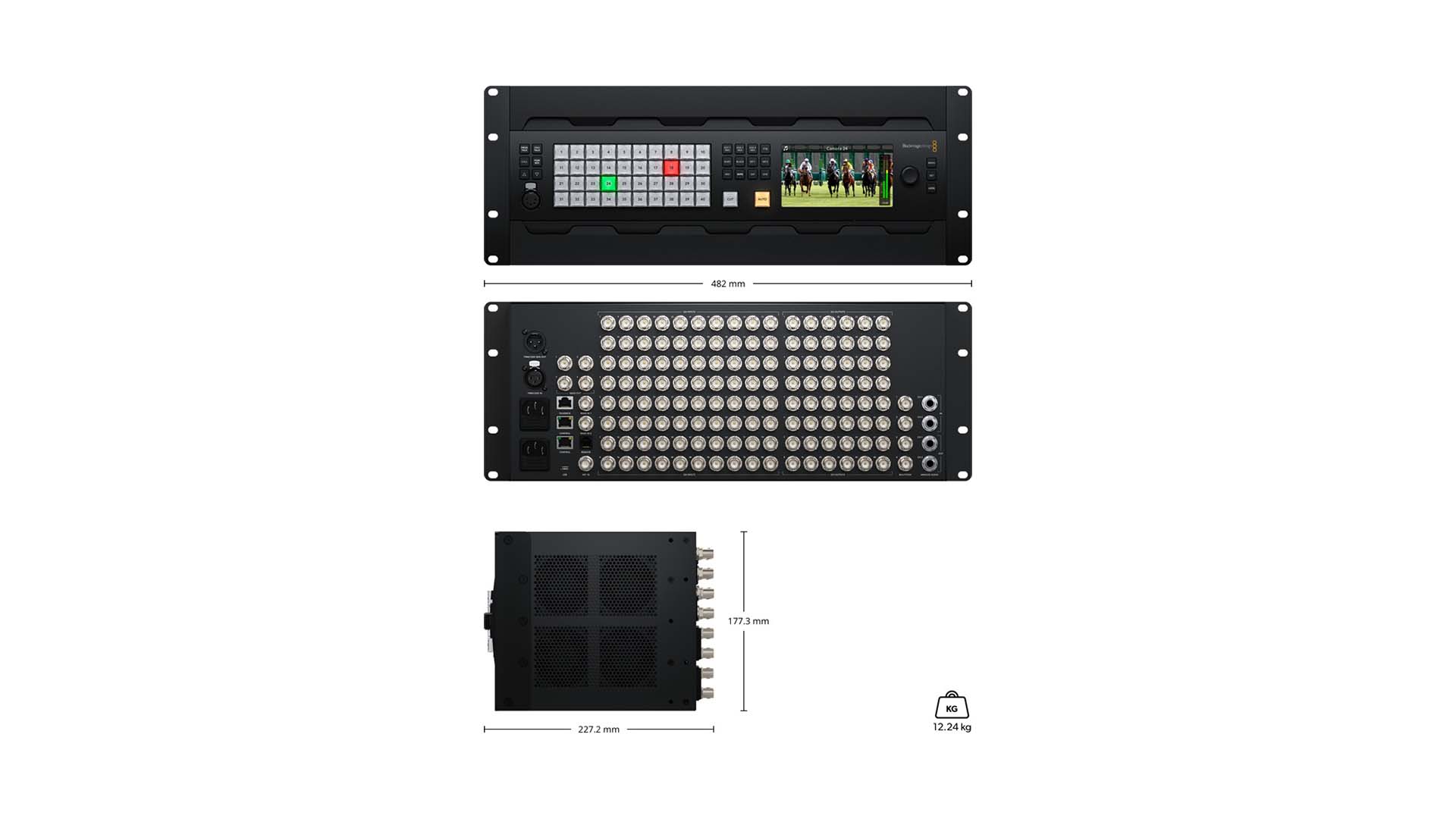

| Dimensions | 482 x 227 x 177.3 mm |
| Video |
Video inputs: 80 Video outputs: 52 AUX outputs: 48 Converted program SDI outputs: 8 SDI multiview outputs: 4 Webcam output: 1 x USB-C (720p or 1080p) |
| Audio |
Audio inputs: 2 x 1/4" jack, 2 x MADI BNC 64ch, 1 x XLR 5 pin talkback Audio outputs: 2 x 1/4" jack, 4 x MADI BNC 64ch, 1 x XLR 5 pin talkback Audio return: Yes |
| SDI |
SDI transmission: 1.5G, 3G, 6G, 12G SDI inputs: 80 x 10 bit SDI outputs: 52 x 10 bit Auto switching: yes, SD/HD/6G/12G Timecode: 1 x in / 1 x out XLR 3 pin Tally output: on 48 SDI outputs |
| Video Formats |
HD: 720p/1080i/1080p Ultra HD: 2160p SDI: SMPTE 292M, 296M, 424M, 425M, 2081-1/10, 2082-1/10/12 Color: REC 709, REC 2020, 10bit HDR: HLG, ST2084 (300-4000 nit) Sampling: 4:2:2 |
| Display |
Front HD LCD for video 42 LED buttons 8 source buttons, 4 transitions, 6 talkback/mix Knob + Set + Lock Monitoring: 4x multiview up to 64 panes |
| Power Consumption | TBA |
| Operating System |
macOS 14 Sonoma / 15 Sequoia or later Windows 10, 11 and 11 ARM |
| Power Supply | 2 x AC 100-240V 50/60Hz (internal) |
| What's in the box |
1 x ATEM 4 M/E Constellation 4K Plus 1 x Wallet with QR for software |
