Teranex mini converter Quad to 12G-SDI for routers, switchers and projectors

 515,00  628,30 vat incl.

We adhere to the OSS system and the VAT amount is calculated for each country of destination of the goods. The precise value must be calculated during the checkout phase.
Information est omnia

In Stock

3 years warranty

Product Code / EAN: 9338716003482 SKU CONVNTRM/DA/QDSDI Category
Blackmagic official partner
Blackmagic official warranty

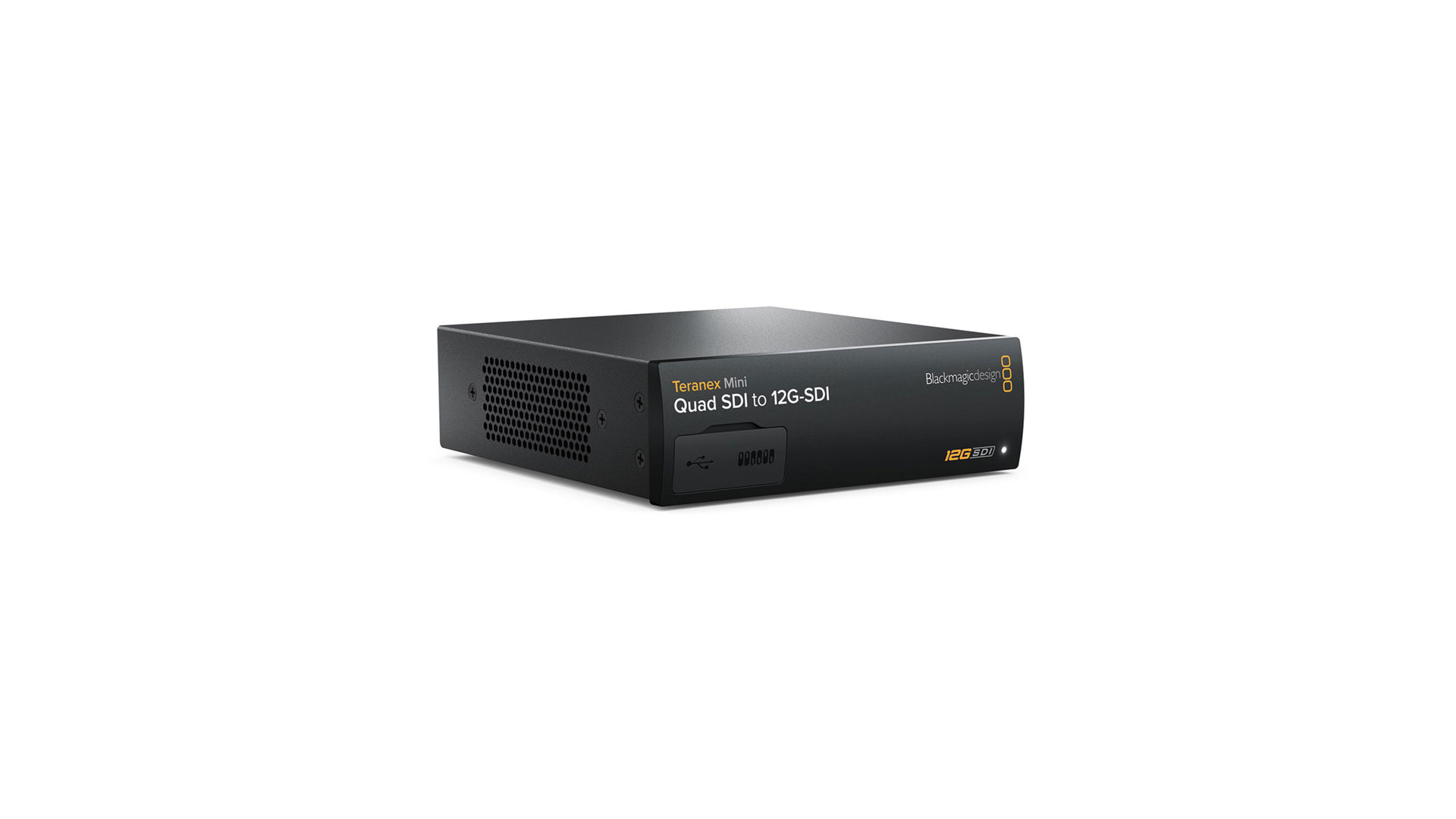

The Teranex mini converter Quad to 12G-SDI SDI for routers, switchers and projectors converts quad link SDI signals to 12G-SDI.

Related videos
Specifications
The Teranex mini converter Quad to 12G-SDI for routers, switchers and projectors converts quad link SDI signals to 12G-SDI. To connect quad link Ultra HD equipment to the latest 12G-SDI Ultra HD devices. Enables devices using four BNC cables to be connected to the latest routers, switchers and projectors with a single 12G-SDI cable. It is compatible with 3G-SDI Level A and B systems.
Weight 580 g
Dimensions 14 x 17 x 4,4 cm

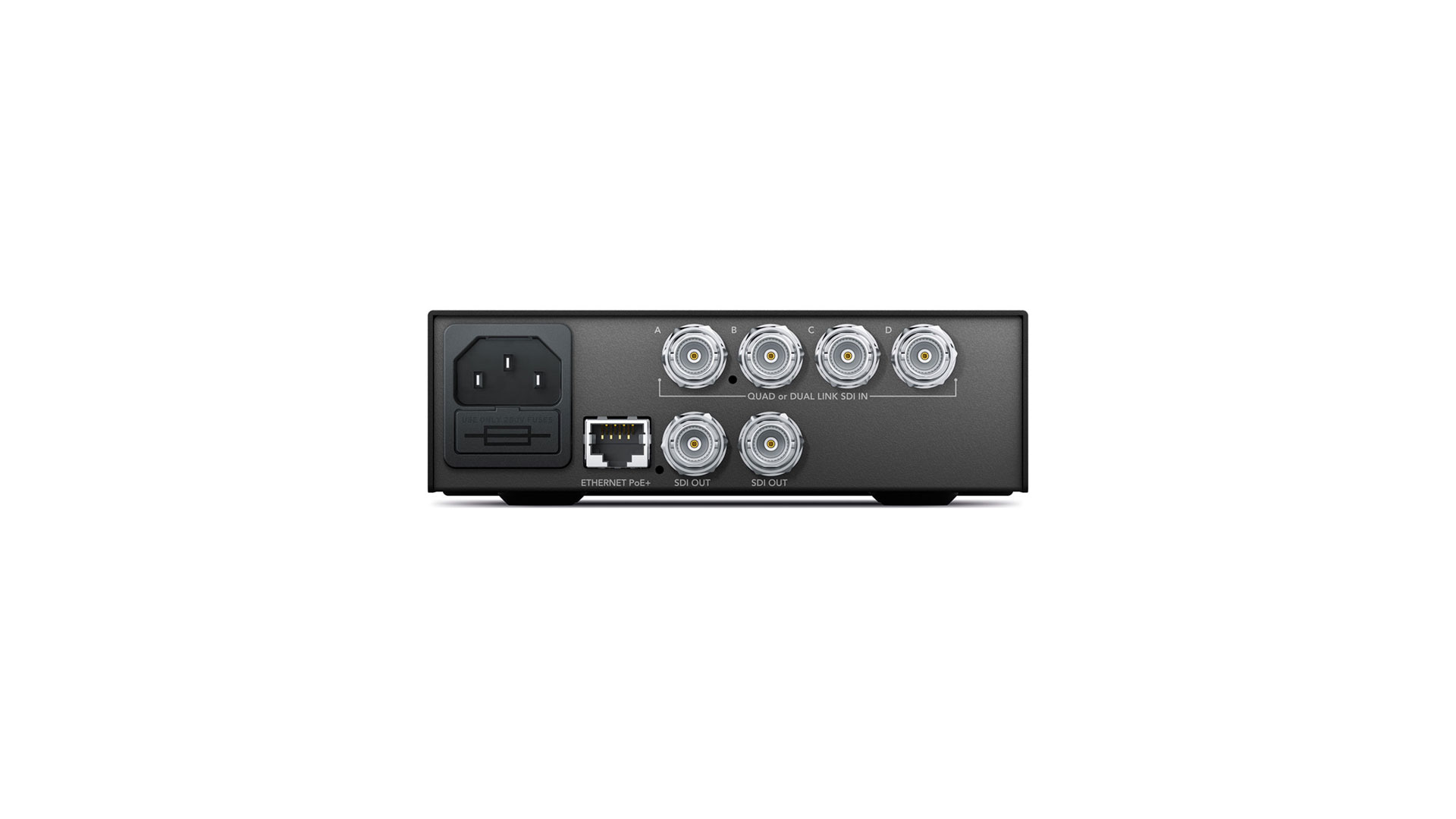

Input 4 x 12G-SDI SD/HD/2K/4K with automatic switching
Output 2 x 12G‑SDI
Standard Standard video SD
525i59.94 NTSC, 625i50 PAL
Standard video HD
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Standard video 2K
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
Standard video Ultra HD
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Standard video 4K
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
Consumption 16 W
Power supply 48 VDC PoE+
