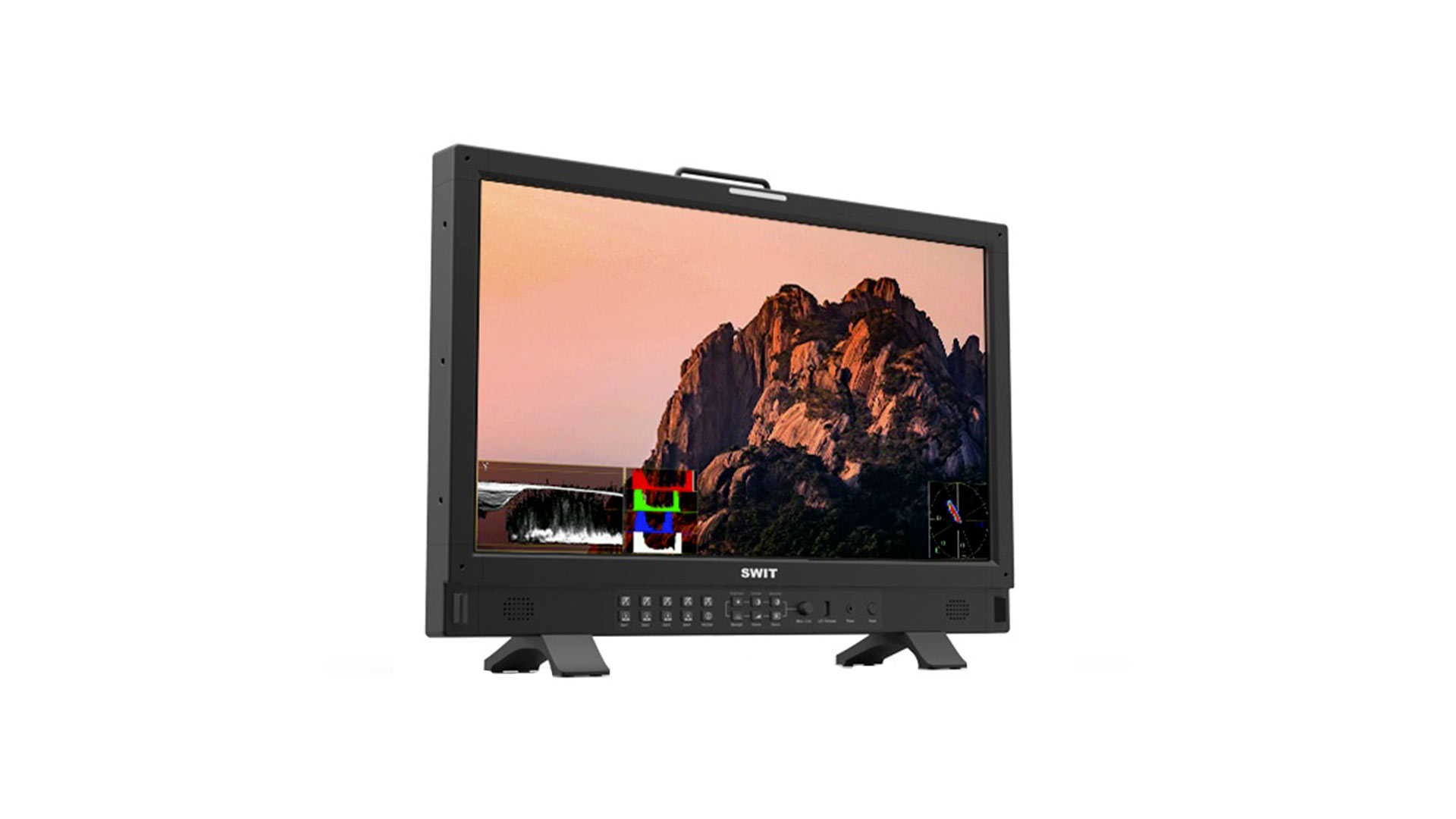

The Swit BM-H245 4K Input Ready Production 23.8″ monitor with auto-calibration adopts a 23.8-inch 1920×1080 QLED panel, wide color gamut with 100% DCI-P3 coverage, 400-nit LED backlight, 1000:1 contrast, 178° H/V viewing angle for broadcast and film productions. BM-H245 offers 4 SDI inputs and 2 SDI loop outputs, supports multiple 4K inputs, including: 12GSDI Single link 4K, 4x3GSDI Quadlink 4K, (SQD and 2SI), HDMI 2.0 (4K60P). Supports pixel-to-pixel zoom of 4K signal on FHD panel. Supports single-link 4K inputs, including 12GSDI, HDMI®2.0, and quadlink 4K inputs, 4x 3GSDI. You can also input 4 independent sources in multiview, or 2 Pic-by-Pic or Pic-in-Pic sources, supports input of mixed 12G/6G/3G/HD-SDI and HDMI 2.0/1.4/1.3 formats, and selection of waveforms, vectors, audio meters, EOTF, color gamut for each input.

The Waveform Studio 4K 23.8″ Swit BM-H245 Ready Production Monitor features a Quantum Dot layer between the LCD screen and LED backlight, which changes the LED spectrum to reduce blue and balance the R/G/B peak, evenly stimulating the cone cells and effectively reducing eye fatigue. The BM-H245 offers HLG (Hybrid Log Gamma), Dolby Vision PQ, SONY S-Log3 HDR and Gamma 1.0/1.8/2.2/2.4/2.6 SDR EOTF and color gamut selection between native LCD, REC.709, DCI-P3 and REC.2020. Supports one input source copied to 4 windows and displays HDR/SDR and different color gamuts simultaneously.

Correct reference can be obtained when producing HDR and SDR together. The BM-H245 supports remote control via webserver via Ethernet LAN connection. Use the computer’s web browser to open the monitor control panel and select input sources, adjust image parameters, set video/audio functions and assign function keys, etc. without installing any APP. The Swit BM-H245 Waveform Studio 4K 23.8″ Ready Production monitor consumes 60W, supports both AC 100-240V and DC 12-17V XLR 4-pin input, and is equipped with a V-mount battery plate on the rear panel.
