Mini Converter SDI to analogue with built-in audio
We adhere to the OSS system and the VAT amount is calculated for each country of destination of the goods. The exact amount will be calculated during checkout.
€ 181,00 € 220,82 tax incl.
Aderiamo al sistema OSS e l'importo IVA è calcolato per singolo paese di destinazione della merce. Il valore preciso verrà calcolato in fase di checkout.
In Stock
Garanzia 3 anni
[you_save]
Product Code / EAN:
9338716000429
COD
CONVMASA
Category Converters | Distributors
Tag Mini Converter

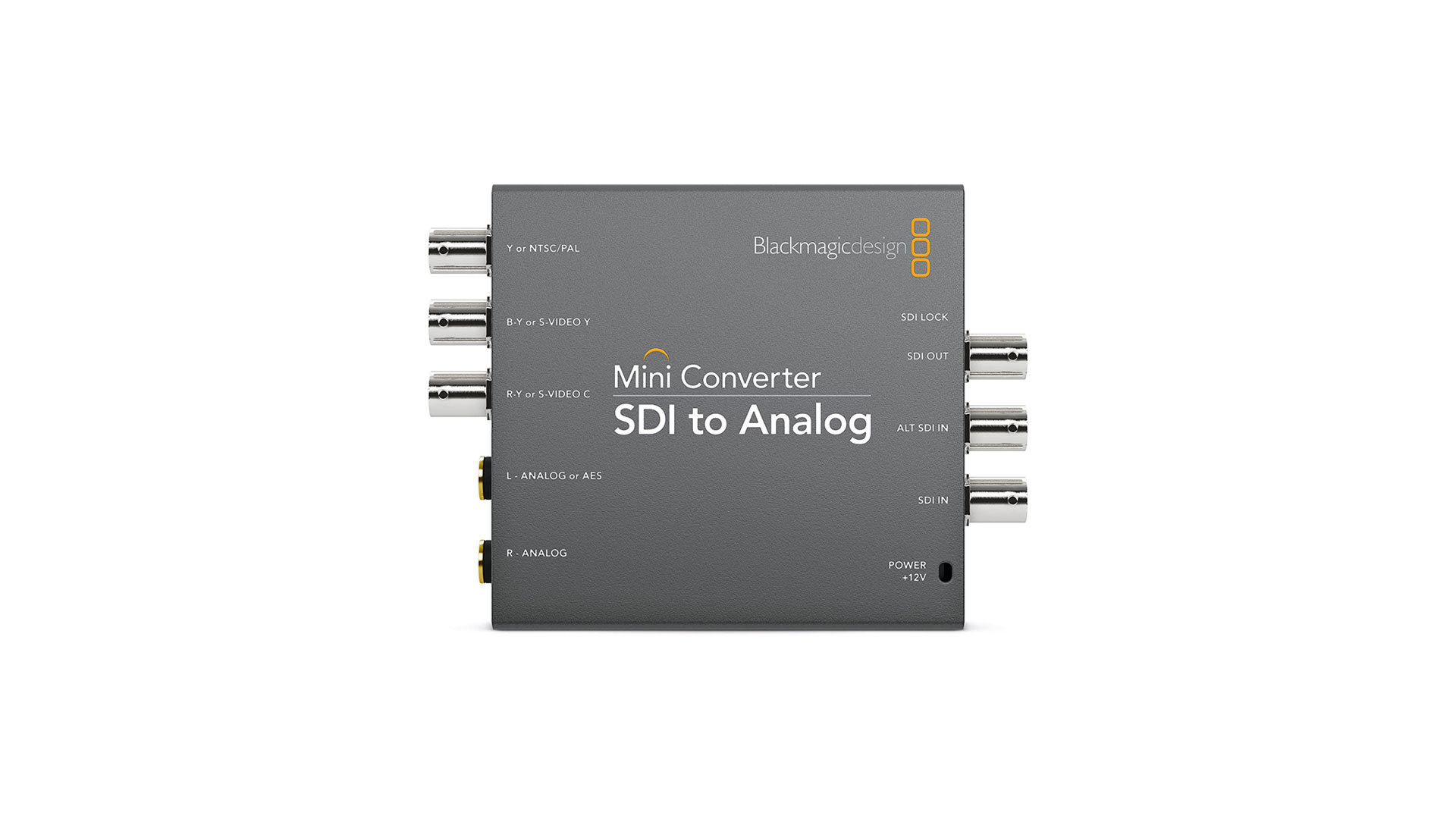

Blackmagic’s mini converter SDI to analogue with built-in audio accepts an SDI input signal and converts it to HD/SD component, NTSC, PAL or S-video output.
[etheme_sales_booster_safe_checkout]
Secure check out
You may also like...
In Stock
In Stock
In Stock
You may be interested in…
In Stock
In Stock
Power supply for Blackmagic mini converter 12V 12W with locking system
€ 37,00 € 45,14 tax incl. Add to cartSpecifications
Blackmagic’s mini converter SDI to analogue with built-in audio accepts an SDI input signal and converts it to HD/SD component, NTSC, PAL or S-video output. It accepts SD and HD inputs up to 1080p30, and performs lower resolution conversions to switch between HD and standard definition analogue formats such as S-Video and composite. Audio can be split and transmitted in balanced analogue or AES/EBU. Mini Converter SDI to Analog is ideal for using older analogue equipment, bypassing the cost of the 6G-SDI 4K model.
| Weight | 228 g |
| Dimensions | 12,3 x 9,3 x 2,3 cm |
| Input | 1 x SD / HD or 1.5G ‑ SDI 1 x Alternate SDI Input |
| Output | 1 x SDI di loop 1 x NTSC, PAL, S ‑ Video and component SD / HD from 1.5G ‑ SDI input 2 x channels of professional balanced analog audio via standard 1/4 “jack connectors 2 x channels of balanced AES / EBU audio |
| Standard | Standard video SD 525i59.94 NTSC, 625i50 PAL Standard video HD 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 Standard video analogico 525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60 |
| Consumption | 8.04 W |
| Power | 12-15 VDC |
