Fujinon UA46x13.5BERD-U1 2/3″ 4K Portable ENG 13.5-621mm ARIA with 2x extender, stabilizer Zoom and B4-mount – broadcast lens
We adhere to the OSS system and the VAT amount is calculated for each country of destination of the goods. The exact amount will be calculated during checkout.
Aderiamo al sistema OSS e l'importo IVA è calcolato per singolo paese di destinazione della merce. Il valore preciso verrà calcolato in fase di checkout.
In Stock
Use the "Request prices and availability" button for more information.
Fujinon UA46x13.5BERD-U1 2/3″ 4K Portable ENG 13.5-621mm ARIA broadcast lens offers 46x zoom ratio and maximum focal length up to 621mm.
Secure check out
You may be interested in…
In Stock
Fujinon UA46x13.5BERD-U1 2/3″ 4K Portable ENG 13.5-621mm ARIA with 2x extender, stabilizer Zoom and B4-mount – broadcast lens offers 46x zoom ratio and maximum focal length up to 621mm in a portable 4K broadcast lens. It uses state-of-the-art optical design technology for rich tonal gradation. Fujinon UA46x13.5BERD-U1 uses a proprietary anti-vibration mechanism to support 4K video production. Features a high-performance motor unit for convenient operation. It achieves natural bokeh thanks to a nine-blade diaphragm.
High resolution and high contrast
Fujinon portable 4K’s optical technology sets a new standard of performance, offering high resolution, high contrast and reduced chromatic aberration. Using fluorite ED elements, it produces sharp and clear images, improving MTF. It also optimises the dynamic range for faithful rendering of video images, without glare.
Reduction of aberrations

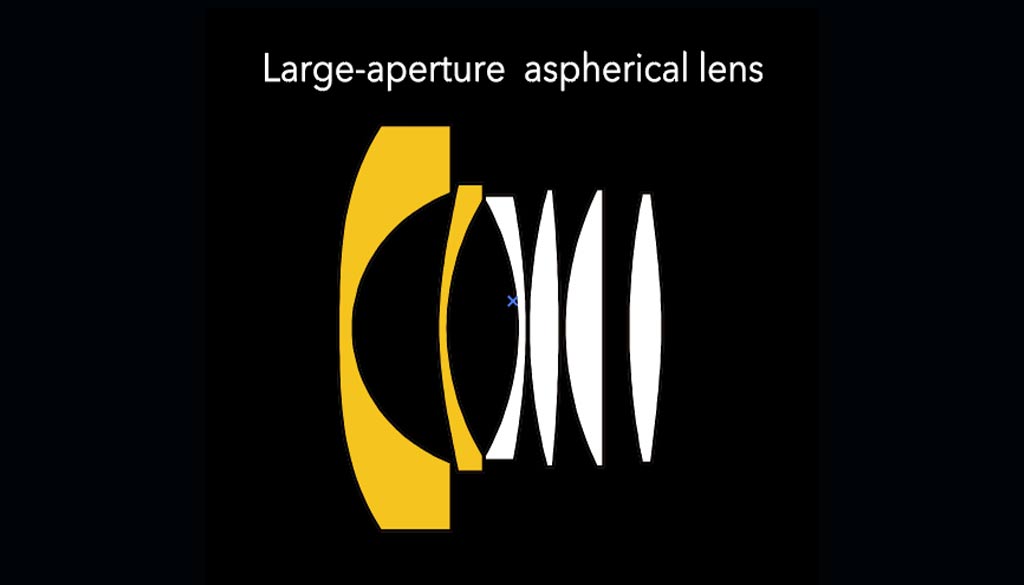

The Fujinon portable 4K’s multi-group zoom structure reduces aberrations throughout the entire range, ensuring high image quality. Aspherical elements and new polishing techniques improve surface accuracy. HT-EBC technology minimises reflections, improving ‘blacks’. Internal lens optimisation reduces ghosting and flare, facilitating camera adjustment.
Natural bokeh achieved with nine-blade iris
Through the use of the iris, Fujinon 4K lenses achieve an almost circular aperture. This makes it possible to render images while taking full advantage of a softer, more natural bokeh effect. These hand-held lenses allow for soft and pleasing blurring of the background while enhancing foreground subjects.
Technical specifications
| Weight | 5,8 kg |
| Dimensions | φ14,65 x 36,42 cm |
| Focal length | (1x) 13,5-621 mm (2x) 27-1242 mm |
| Maximum aperture | F 2,8 (13,5-316 mm) - F 5,5 (621 mm) |
| Lens mount | B4-mount |
| Zoom ratio | 46x |
| Estensore | 2x |
| Focus type | Servo |
| Filter thread | M127 x 0,75 |
| Minimum focus distance | 2,8 m |
| Object dimensions at M.O.D. (16: 9) | (1×) 13,5 mm 1886 mm x 1060 mm 621 mm 42 mm x 24 mm (2×) 27 mm 936 mmx526 mm 1242 mm 21 mm x 12 mm |
| Angle of view | (1×) 13,5 mm 39,1° x 22,6° 621 mm 0,9° x 0,5° (2×) 27 mm 20,1° × 11,4° 1242 mm 0,4° x 0,2° |
