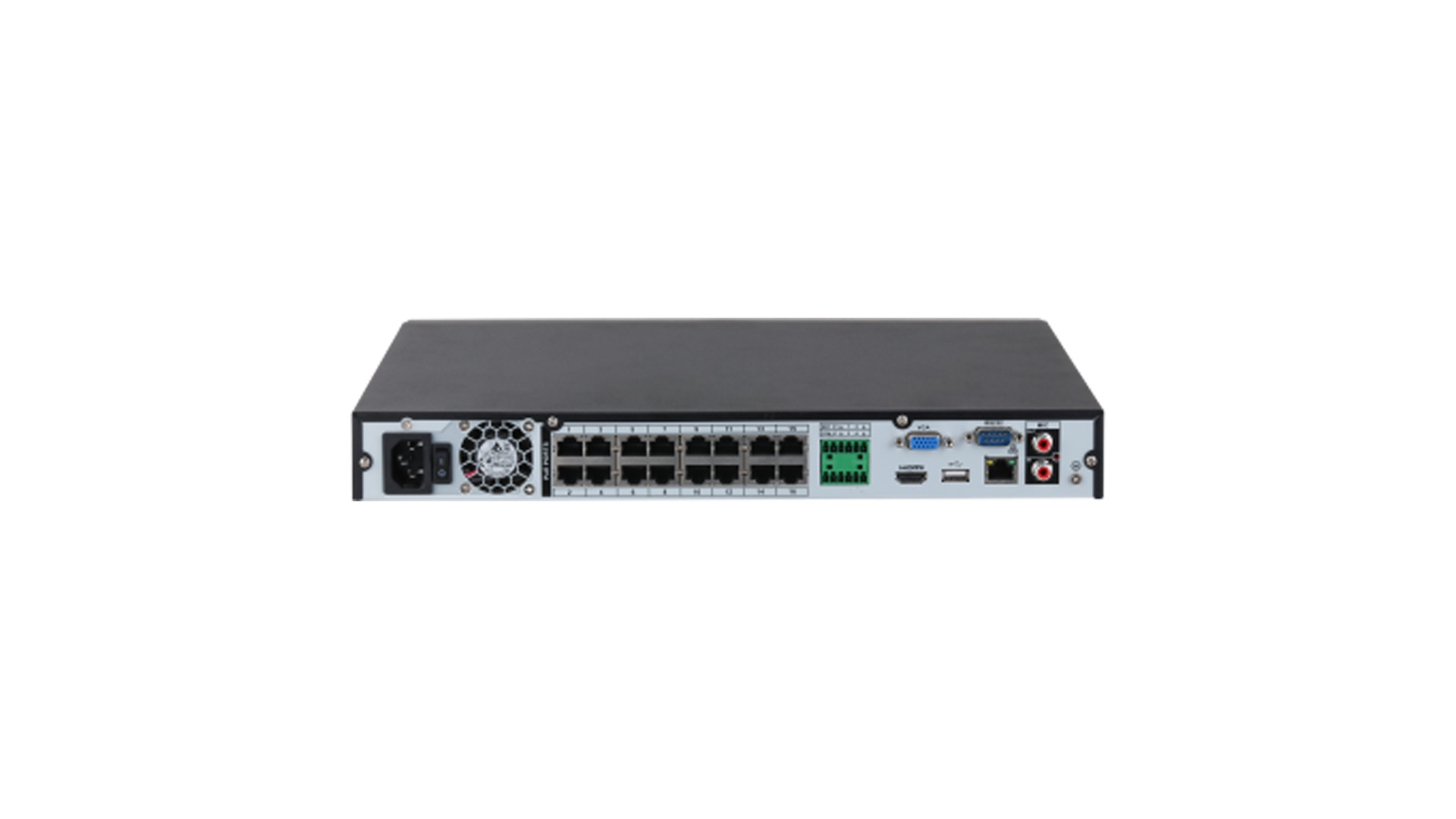

Dahua NVR IP 16PoE 16 channels 1U 12MP 2HDDs with AI WizSense NVR2216-16P-I2
€ 310,00 € 378,20 vat incl.
We adhere to the OSS system and the VAT amount is calculated for each country of destination of the goods. The precise value must be calculated during the checkout phase.
In Stock
Product Code / EAN:
6923172520159
SKU
NVR2216-16P-I2
Category NVR
Tags 12 MP, 16 channel, Poe, WizSense
12 MP max resolution
16 PoE ports
Recording 16ch @ 12MP
Decoding 1ch @ 8MP / 4ch @ 2MP
Dahua NVR IP 16PoE 16 channels 1U 12MP 2HDDs with AI WizSense NVR2216-16P-I2 adopts WizSense techhnology, independent AI chip and deep learning algorithm.
Specifications
Dahua NVR IP 16PoE 16 channels 1U 12MP 2HDDs with AI WizSense NVR2216-16P-I2 adopts WizSense techhnology, independent AI chip and deep learning algorithm. WizSense focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. NVR2216-16P-I2 provides functions such as local live view, multi-screen display, real-time storage on local HDD, fast operation by mouse, and remote management and control. This product is suitable for face detection and recognition at entrances and exits plus perimeter protection of people and vehicles. Face detection feature detects if there is any human face appearing in the video. This technology adopts a deep learning algorithm to support face detection, tracking, optimization and capturing, and then output the best face snapshot. Dahua Face Recognition technology extracts the features of captured faces and compares them with those in face database to recognize the person identity.
Perimeter protections automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to perform secondary recognition for the targets, improving alarm accuracy. With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the alarm triggered by non-concerned targets to realize effective and accurate alarm. The NVR supports AI seach by metadata of different targets or uploading face pictures to device and comparing them with recorded faces by similarity. It enables operators to quickly and easily search through multi channels and long duration, efficiently find out when and where a person of interest appeard. The NVR is equipped with a smart fan to achieve high cooling efficiency. It automatically turns on or turns off according to CPU and ambient temperature. The fan is long-lasting and low noise, reducing maintenance costs and improving the user experience.
Perimeter protections automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to perform secondary recognition for the targets, improving alarm accuracy. With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the alarm triggered by non-concerned targets to realize effective and accurate alarm. The NVR supports AI seach by metadata of different targets or uploading face pictures to device and comparing them with recorded faces by similarity. It enables operators to quickly and easily search through multi channels and long duration, efficiently find out when and where a person of interest appeard. The NVR is equipped with a smart fan to achieve high cooling efficiency. It automatically turns on or turns off according to CPU and ambient temperature. The fan is long-lasting and low noise, reducing maintenance costs and improving the user experience.
Recorder
| Audio I/O | Input: 1 × RCA input Output: 1 × RCA output |
| Alarm I/O | Input: 4 Output: 2 |
| HDD | 2 SATA ports, up to 10 TB. The maximum HDD capacity varies with environment temperature |
| USB | 1 × front USB2.0; 1 × back USB2.0 |
| HDMI | 1 (max. resolution: 4K) |
| VGA | 1 |
| Network | 1 × RJ-45, 10/100/1,000 Mbps |
| PoE | 16 × PoE ports, 10/100 Mbps |
| General Alarm | Motion detection; privacy masking; video loss; PIR alarm; IPC alarm |
| Anomaly Alarm | Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception |
| Intelligent Alarm | Face detection; face recognition; perimeter protection (intrusion and tripwire); IVS; SMD Plus |
| Alarm linkage | Recording; snapshot; buzzer; log; preset; email; tour |
| Power | 100-240V, 47-63HZ, 3.5A Total output of NVR is ≤ 10W (without HDD) Total output power of PoE is 130W, the maximum output power of a single port is 25.5W |
| Certifications | FCC:47 CFR FCC Part15,SubpartB,Class A CE-EMC:EN 55032:2015,Class A;EN IEC 61000-3-2:2019;EN 61000-3-3:2013+A1:2019;EN 55024:2010+A1:2015;EN 55035:2017;EN 50130-4:2011+A1:2014 CE-LVD:EN 62368-1:2014+A11:2017 |
System
| Main processor | Industrial-grade embedded processor |
| OS | Embedded Linux |
| Operation interface | Web; local GUI |
Intelligence
| AI | AI By Camera: Face detection; face recognition; perimeter protection; SMD Plus AI By Device: Face detection; face recognition; perimeter protection; SMD Plus |
| Perimeter protection | Performance AI by Device: 1 channel Performance of AI by Camera: 4 channels |
| Face Detection | Face attributes: 6 attibutes (Gender; age group (6); glasses; expressions (8); mouth mask; beard) Performance of AI by Device (1080P): 1 channel (up to 12 face images/second) Performance of AI by Camera: 5 channels |
| Face Recognition | Face Database Capacity: Up to 10 face databases with 5,000 images Performance of AI by Device (1080P): 1 channel (up to 4 face images/second) Performance of AI by Camera: 5 channels |
| SMD Plus | SMD Plus by Device: 4 channels SMD Plus by Camera: 6 channels SMD Plus (AI by camera): Detects tripwire and intrustion of human or vehicle; filters false alarms caused by leaves, raindrops and change of brightness away |
Video
| Compression | Video: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG Audio: PCM; G711A; G711U; G726 |
| Access channel | 16 |
| Network Bandwidth | AI off: Access: 144 Mbps; Storage: 144 Mbps; Forward: 72 Mbps AI on: Access: 72 Mbps; Storage: 72 Mbps; Forward: 36 Mbps |
| Resolution | 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1 |
| Decoding Capability | AI disabled: 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8MP@30 fps; 1-channel 5MP@30 fps; 2-channel 4MP@30 fps; 4-channel 1080p@30 fps |
| Video Output | 1 × VGA, 1 × HDMI (simultaneous) |
| Multi-screen Display | 1, 4, 8, 9, 16 views |
| Third-party Camera Access | ONVIF |
Network
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); P2P;Auto Registration |
| Mobile Phone Access | Android; iOS |
| Interoperability | ONVIF (profile T; profile S; profile G); CGI; SDK |
| Browser | Chrome; IE9 or later; firefox |
Record Playback
| Multi-channel Playback | Up to 16 channels |
| Record Mode | Manual record; alarm recordings; motion detection recordings; scheduled recordings |
| Storage | Local HDD and network |
| Backup | USB device |
| Playback Function | 1. Play; pause; stop; fast forward; fast backward; rewind; play by frame 2. Full screen; backup (vide clip/file); partially zom in; audio on/off |
Structure
| Operating temperature | –10 °C to +55 °C |
| Operating humidity | 10℅~93℅ |
| Storage temperature | 0 °C to +40 °C |
| Storage humidity | 30%~85% |
| Operating Altitude | 3000 m |
| Installation | Desktop mounted |
| Weight | 2630 g |
| Dimensions | Product: 37.5 x 32.9 x 5.3 cm Packaging: 14.8 x 44.9 x 42.1 cm |
