Blackmagic Videohub 80×80 12G with LCD full HD display
€ 9.359,00 € 11.417,98 vat incl.
We adhere to the OSS system and the VAT amount is calculated for each country of destination of the goods. The precise value must be calculated during the checkout phase.
In Stock
Shipped within 10-14 days
Garanzia 3 anni
Product Code / EAN:
9338716008616
SKU
VHUBSMAS12G8080
Category Switcher | Video Mixer | Video Matrix | Streaming
Blackmagic official warranty

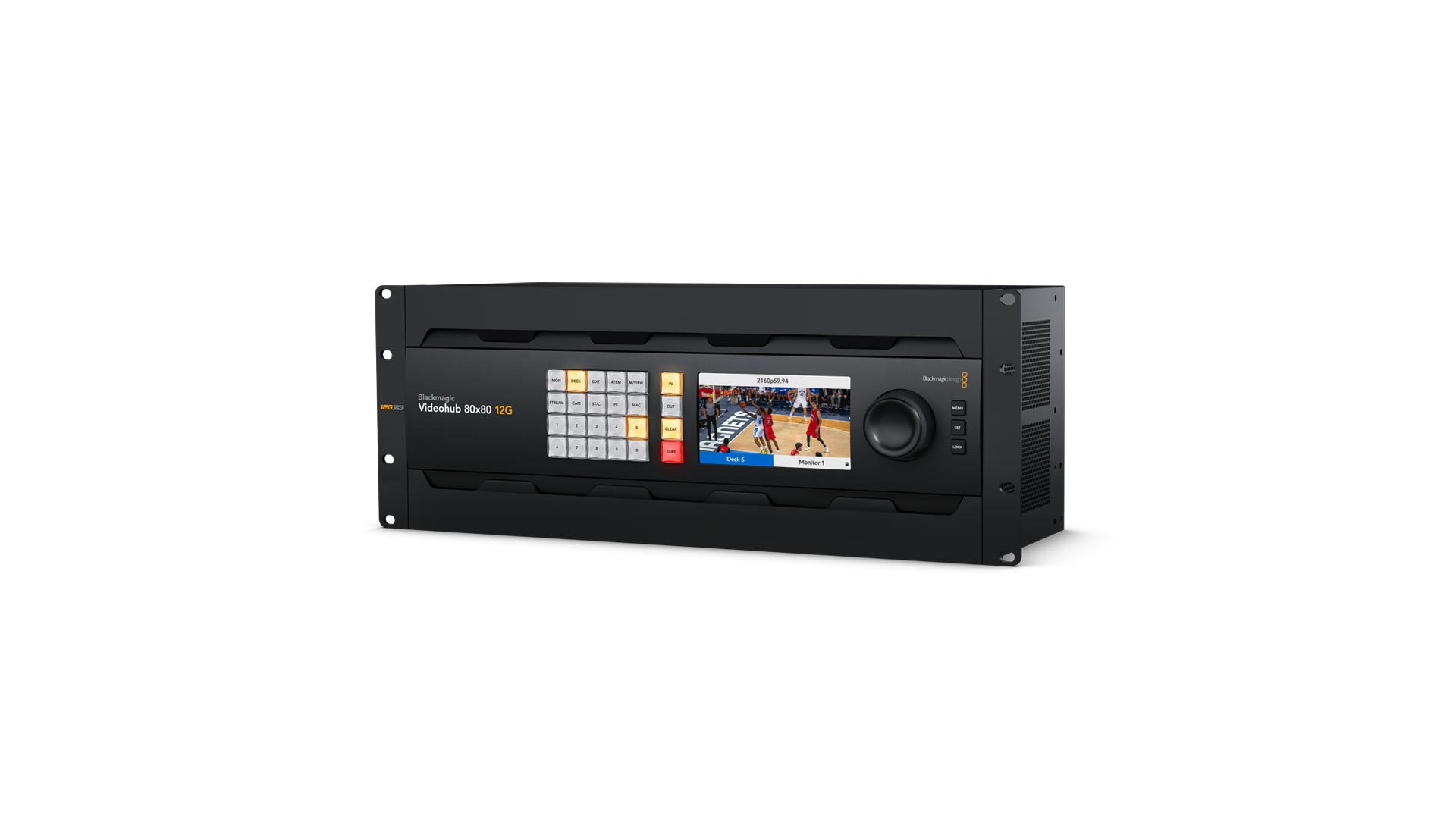

Blackmagic Videohub 80×80 12G with LCD full HD display is an advanced zero-latency matrix, compatible with any combination SD, HD, Ultra HD.
Related videos
Specifications

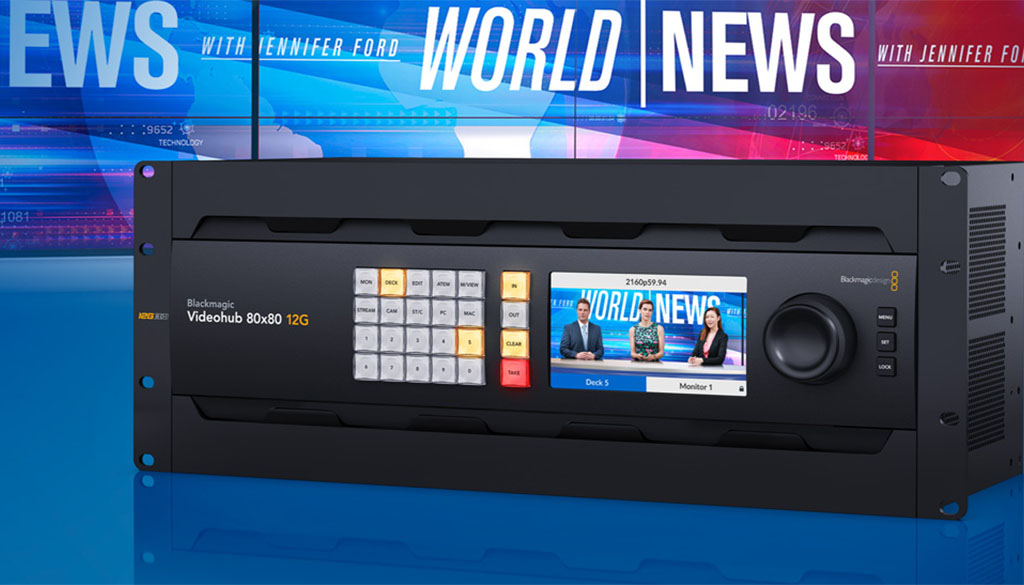

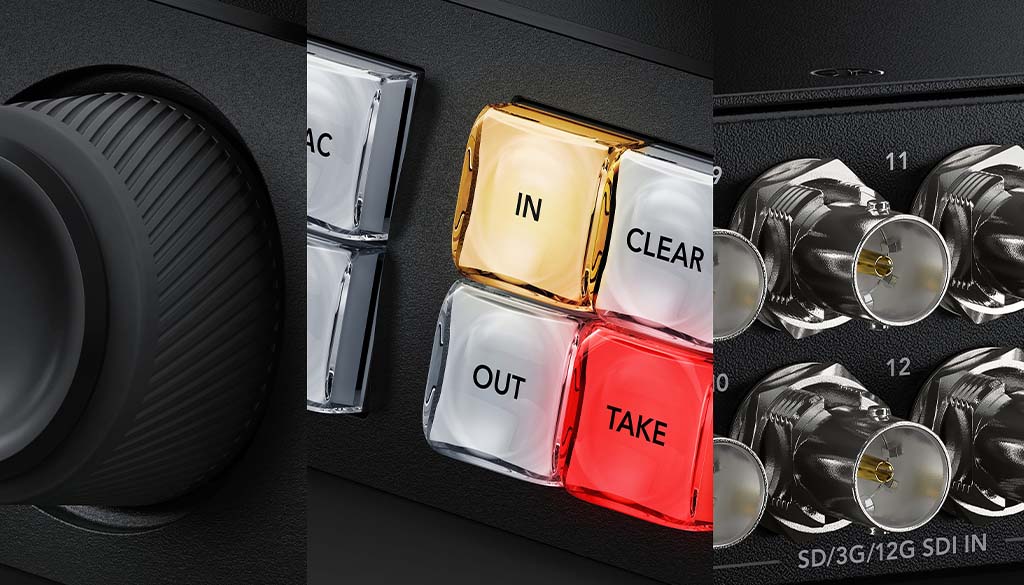

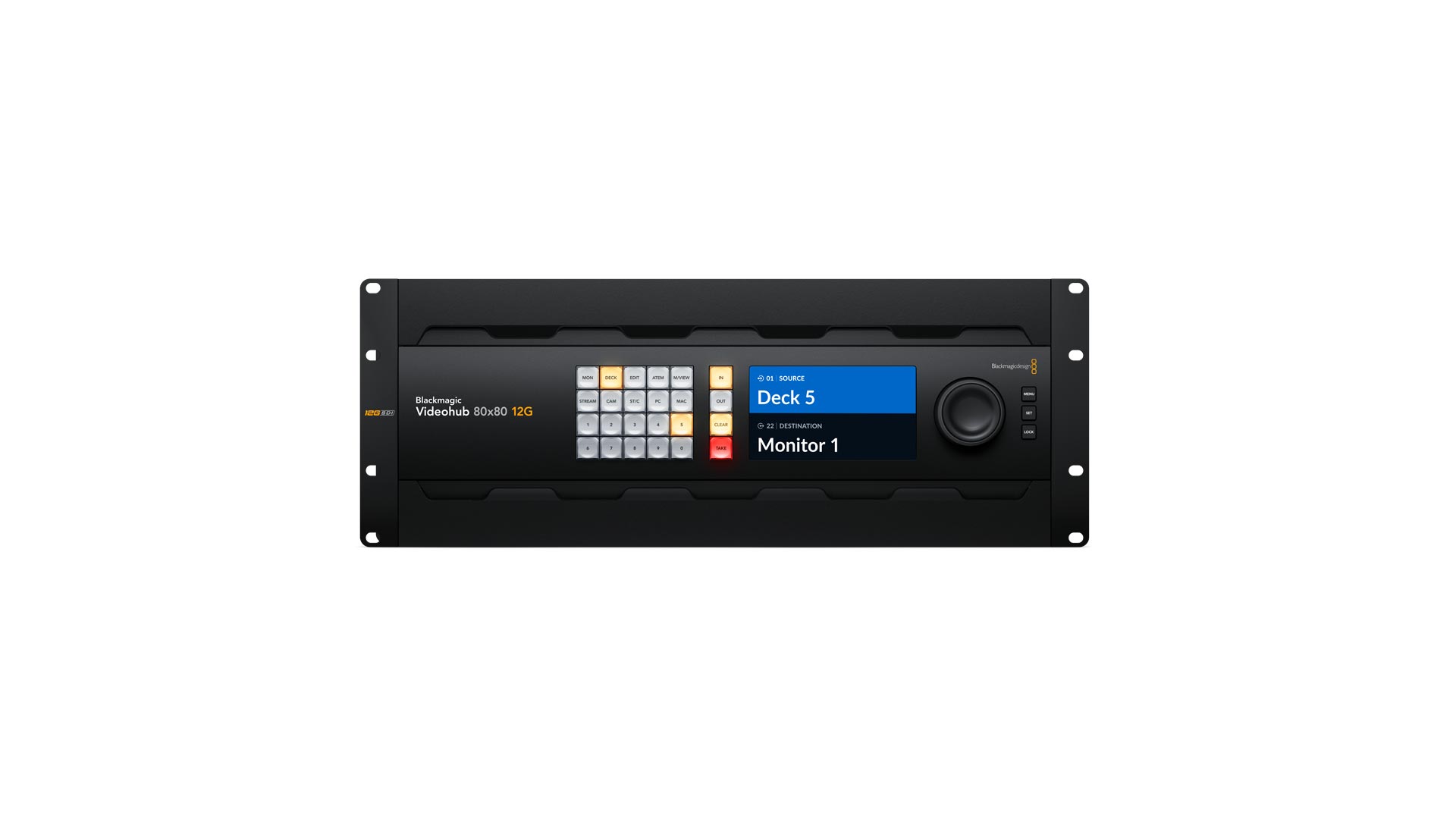

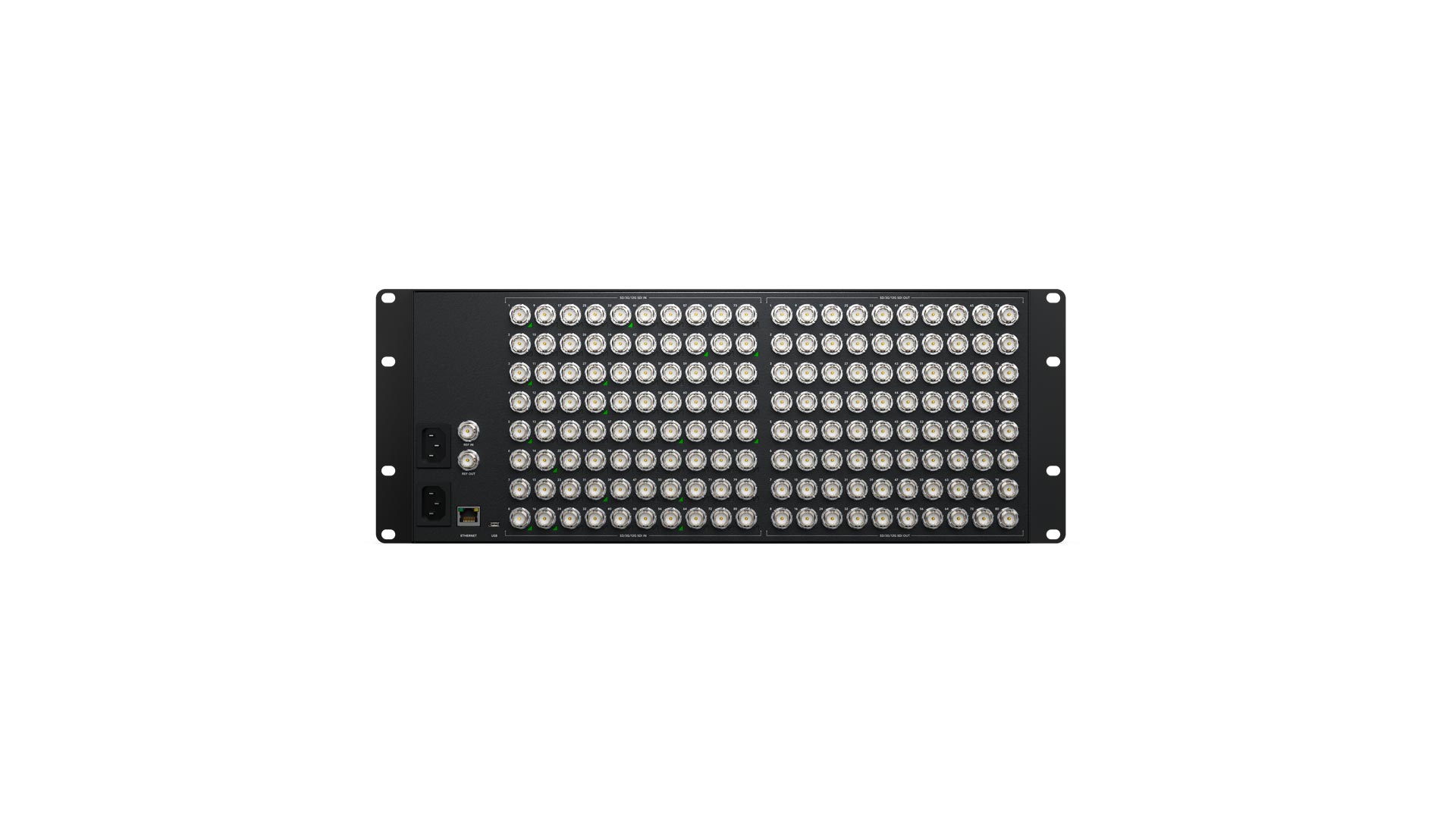

Blackmagic Videohub 80×80 12G with LCD full HD display is an advanced zero-latency matrix compatible with any combination of SD, HD and Ultra HD at the same time. The BNC connector on each of the 80 12G-SDI inputs has an LED to indicate the presence of an SDI signal. There are also 80 12G-SDI outputs, backup power and reference connections in a formidable 4RU design. The large full HD LCD allows you to see the video before routing and shows video labels and standards. Routing operations can be done directly from the selection buttons by turning the convenient knob with electronic friction. It offers SDI reclocking, external control via Ethernet, and compatibility with all SDI video standards up to 2160p60.
| Weight | 10,9 Kg |
| Dimensions | 48,2 x 23,8 x 17,7 cm |
| Input | 80 x 12G-SDI |
| Output | 80 x 12G-SDI |
| SDI transmission | DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G |
| Resynchronization of SDI sources | No |
| Relocking SDI | On all SDI outputs |
| Reference inputs | Tri-Sync or Black Burst |
| Reference Outputs | Loop output with reference interruption |
| Ethernet | 10/100/1000 BASE‑T |
| Computer interface | USB-C |
| Format | SD 525i59.94 NTSC, 625i50 PAL HD 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23,98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI |
| SDI | SDI compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601 SDI audio sampling: 48kHz and 24-bit sampling frequency (standard television) SDI video sampling: YUV 4:2:2 e RGB 4:4:4 SDI color precision: RGB 4:4:4 at 10 and 12 bits in all HD and 2K modes; Ultra HD mode up to 2160p30; 4K mode up to 4Kp30 DCI. YUV 4:2:2 at 10 bits in all modes. SDI color space: REC 601, REC 709, REC 2020 SDI auto switching: Automatic selection between 270Mb SD-SDI, 1.5G HD-SDI, 3G level A and level B HD-SDI, 6G HD-SDI, 12G-SDI and DVB-ASI on each input, so that a different TV standard can be used on each. Compatible SDI metadata: Auxiliary video load identification data according to the SMPTE 352M standard |
| Built-in control panel | 24 x Buttons for local control 3 x Buttons and knob to navigate the menu |
| External control panel | Includes Blackmagic Videohub control software for Mac and Window. Compatible with Videohub Smart Control Pro and Videohub Master Control Pro external panels Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol |
| Display | Built-in 5″ LCD display for video and settings menu |
| Power consumption | 92W max |
| Power supply | 2 x AC 100-240V 50/60Hz built-in with IEC cable |
